Triad-Orbit Microphone Stand Buying Guide

hero

Whether you’re working in the confines of a studio or the chaos of a live stage, Triad-Orbit’s modular stand system makes your job easy. If your work requires you to be as efficient as possible, then you’ll love Triad-Orbit technology. Each individual component, from Orbital Mic Adapters to multi-position tripods, is noteworthy on its own, but together, they also add up to create a fully modular stand system. Swap mics, position stands, and find the sweet spot for the perfect sound, all in a matter of seconds. Whether it’s Triad-Orbit’s unique ball mounts or multi-position tripod bases, you’ll find countless ways to improve your workflow with Triad-Orbit gear.

Watch this video for an in-depth demonstration of Triad-Orbit microphone stand systems.

Triad-Orbit Technology

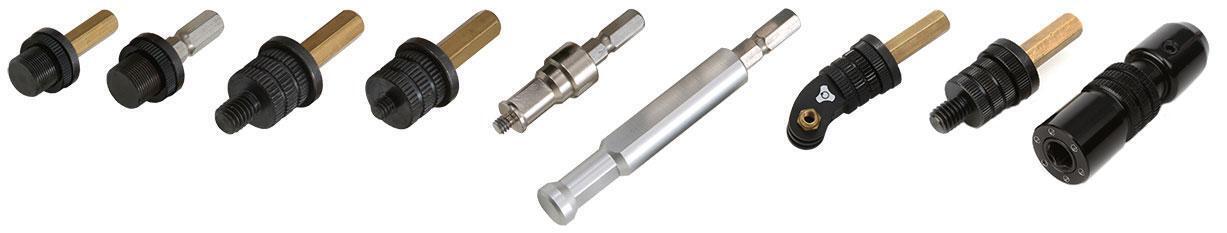

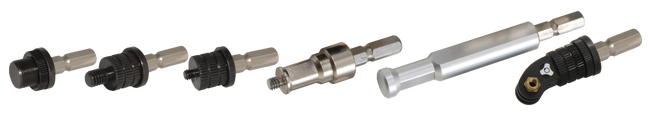

IO Quick-Change Couplers

You’ll find Triad-Orbit’s IO Quick-Change Couplers on all their stands and most of their adapters and attachments as well. These couplers are superior to standard quick-release mic couplers for a number of reasons. For one thing, they lock into place so solidly that they’re capable of supporting far more than just microphones. Simple IO Quick-Change Couplers such as the IO-H1 let you swap out mics in seconds. IO Quick-Change Couplers also come standard on Triad-Orbit booms and other accessories, which makes it easy to completely reconfigure your stands for any task.

IO-H

IO-H · Learn more

IO-R

IO-R · Learn more

  • Extremely secure hex-rod-based quick-release couplers
  • Swap out microphones and other components in seconds
  • Found on most Triad-Orbit stands, adapters, and accessories
  • Makes Triad-Orbit’s stand system completely modular
  • Available in standard brass and heavy-duty stainless steel

Orbital Micro Adapters

Orbital Micro Adapters feature a stem-and-ball mount, which lets you position your microphone at any angle and orientation. Their full 360-degree range allows you to easily reach into tight spaces at odd angles, making them ideal for acoustic pianos and drum sets. Stick a mic mounted on a Micro Adapter in front of a guitar cabinet or snare drum, and you’ll find the sweet spot in record time. Worried about stability? Don’t be. Once you tighten down the clutch, that ball isn’t going to move on you. Triad-Orbit Micro Adapters come in two basic configurations, the long-stem Micro 1/M1 and the short-stem Micro 2/M2. Choose between IO Quick-Change connectors or standard 5/8″ mic threading.

  • Perfect for fine mic positioning and reaching tight spaces
  • Micro 1/M1 features a long stem and a highly flexible rotation range
  • Micro 2/M2 features a short stem and side grooves for added stability
  • High-performance screw clutch locks the ball mechanism in place
  • Available with IO Quick-Change connectors or retrofit 5/8″ threading

Triad Stands

Solid-metal Tripod Base

Beyond their impressive build quality and the integrated IO Quick-Change connector, there are three wonderful things about Triad Stands everyone should know. First off, the tripod legs are made of solid metal. Unlike metal tube legs that are built to be lightweight and easy to move, Triad Stand bases are built to be stable and hard to move. Onstage, these stands pay for themselves by preventing your mics from getting knocked over; whereas the support they provide for heavy yet delicate condenser mics makes them ideal for studio use too.

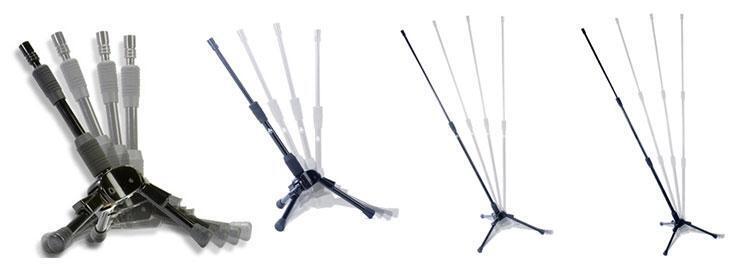

Individually Adjustable Leg Angles

Individually Adjustable Leg Angles

Triad Stands’ weighted bases are also important because they incorporate Triad’s unique multi-position legs. You can set each leg independently to one of four angles via a stable ratcheting mechanism. This is a major convenience for two reasons. First, by ratcheting all three legs to the same height, you can overlap bases to get your stands right next to one another. That’s something anyone who’s had to mic up a tight drum kit can appreciate. Second, by ratcheting up only one leg, you can tilt your stand up to 65 degrees, eliminating the need for a boom for many applications. Thanks to the weighted base, you still get greater stability than you’d get from a typical stand, but if you need more, you can always add a set of GB-3 Grav Bags to increase the weight.

Industrial-grade Clutch

Finally, there’s the Triad Stand clutch. One of the biggest stand problems engineers face is clutch failure. That’s because the average clutch is one of the areas where manufacturers compromise to reduce the cost of their stands, and it’s the first thing to wear out. Using Triad Stands means no more drooping mics! With industrial-grade clutches on all their telescoping shafts, Triad Stands won’t slip or fail on you. Once tightened, these clutches aren’t going to move, even under loads that would cripple ordinary stands. At the same time, knurled metal clutch barrels make Triad Stands easy to adjust, so you never have to worry about locked up grip clutches or over-tightened thumb screws.

  • Solid tripod bases are extremely stable and hard to knock over
  • Independent ratcheting 4-position legs let you stack bases
  • Securely tilt your stand up to 65 degrees for boom-like reach
  • High-capacity, industrial-grade clutches on all telescoping shafts
  • Available in 4 sizes: tall T3, standard T2, short T1, and mini TM

orbit-booms-sm

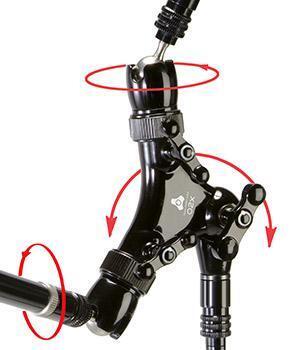

Orbit Booms

The Triad-Orbit stand system gets truly modular when you consider all the possibilities their Orbit Booms and other extensions offer. Orbit Booms come in five configurations, from a small single-boom arm to a complex dual-boom system. Orbit swiveling joints with heavy-duty locks provide an extensive positioning range to accommodate any recording or sound-reinforcement application. Industrial-grade clutches provide rock-solid telescopic length adjustments, and IO Quick-Change connectors allow you to connect any Triad-Orbit IO Component.

  • Orbit Arm/OA with an IO-A2 creates a simple, free-standing boom arm
  • Orbit Mini/OM and Orbit 1/O1 single booms feature telescopic arms
  • Dual-arm Orbit 2/O2 models are perfect for stereo and complex miking
  • Orbit swiveling ball connectors provide 360-degree angle flexibility
  • Industrial-grade clutches and IO Quick-Change Couplers

Additional IO Components

Triad-Orbit is constantly expanding their product line with cool new IO component mounts. The IO-Vector Stereo Utility Bar is a configurable dual/triple IO Quick-Change mount that’s perfect for multi-mic recording techniques. Combine one or more with IO-A series boom extensions, and you can easily set up Decca tree and even more complex stereo configurations. There are also IO Component mounts for your iPad, camera, laptop, or VESA display. Other components, such as the IO-C Clamp and IO-W Wall Plate, are great alternative bases for the Orbit Arm/OA boom base. Add a short boom arm, and you have a perfect way to get inside a piano or mount a short boom extension to your wall or ceiling.

  • Expand your system with modular mounts and attachments
  • Use an IO-Vector Stereo Utility Bar and IO-A boom arms for multi-miking
  • IO-C Clamp lets you mount IO Components to flat edges and pipes
  • IO-W Wall Plate provides a mounting point on your wall or ceiling
  • Mounts for lighting, cameras, laptops, displays, and iPads also available

Complete Triad-Orbit Stand Systems

As you can see, there are endless ways to combine Triad-Orbit stands, mounts, and other components to fit the needs of any recording or sound-reinforcement environment. You can get as creative as you like, and your Triad-Orbit gear will hold up to any task you throw at it. But with all these options, finding the right place to start can get a little overwhelming. We’ve worked closely with Triad-Orbit to come up with a few great combinations for everyday miking challenges. Whether you’re in the studio or center stage, these systems are guaranteed to meet your needs.

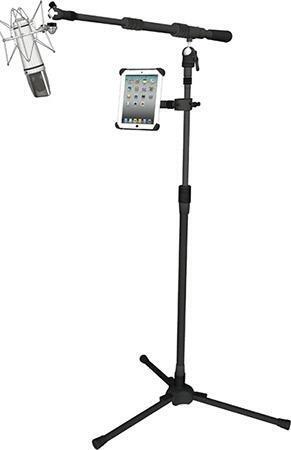

Modern Vocalist System

TOPack1-large

Learn more about the Modern Vocalist System

This includes all the components you need for vocal performance with your iPad in one flexible package. Whether you’re using your iPad as a lyric sheet onstage or to control your DAW in the studio, this robust and flexible system makes it easy. It begins with a standard-height Triad T2 stand, which adjusts easily for standing or seated performance. A flexible Orbit boom with a Micro 2 short-stem orbital swivel arm makes positioning both front- and side-address microphones easy, regardless of the height and angle you prefer.

With the combination of an IO-C Clamp and iOrbit 1 iPad Mount, which includes a short-stem Micro 2/M2-R orbital swivel arm, you can also position your iPad or iPhone at the height and angle you need to see it clearly. Want to add another mic for your guitar? It’s as easy as attaching another IO-C Clamp with an Orbit Arm/OA, IO-A2 Quick-Change boom arm, and another Micro 2/M2 orbital mic adapter.

Included Components:
Mic Stand
  • Triad T2 medium (36″-71″) stand
  • Orbit 1/O1 (21″-37.75″) orbital boom
  • Micro 2/M2 short-stem orbital mic adapter
iPad Holder
  • IO-C Clamp IO Quick-Change Coupler base
  • iOrbit iPad/iPhone holder with Micro 2/M2-R coupler
Optional Components:
  • IO-C Clamp IO Quick-Change Coupler base
  • Orbit Arm/OA orbital boom base
  • IO-A2 Quick-Change boom arm (21.75″-31″)
  • Micro 2/M2 short-stem orbital mic adapter

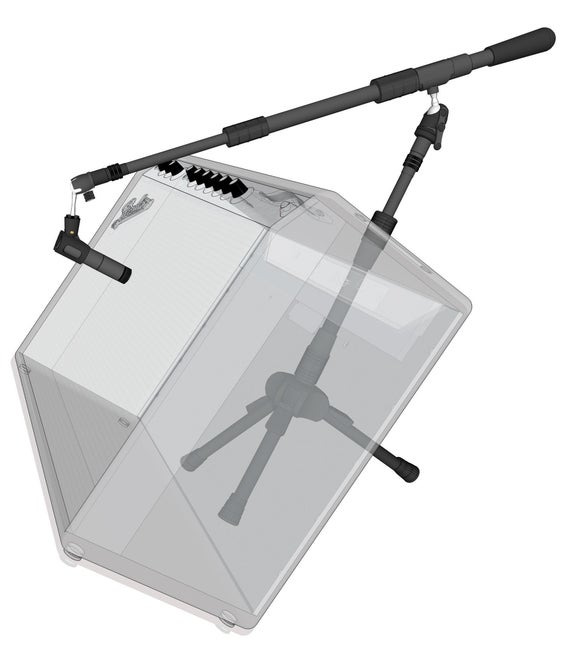

Kickback Combo Amp System

Triad-Orbit Kickback Combo Amp System Mic Stand Package

Learn more about the Kickback Combo Amp System

While Triad-Orbit’s stands and attachments allow you to pull off impressive and complex mic-mounting systems, they’re also exceptionally useful for simple tasks, such as miking combo amps. This system is ideal for miking guitar and bass combo amps in tight spaces. You can comfortably lean your amp back against the Triad T1 short stand by extending two of its legs. Extend the Orbit 1/O1 orbital boom over the amp and hang your mic with the attached Micro 1/M1 long-stem orbital mic hanger to get the ideal mic angle and placement on the speaker.

By the way, you can easily upgrade this system to suspend two microphones. Just add an IO-Vector Stereo Utility Bar and another Micro 1/M1. This will allow you to set up classic on- and off-axis mic techniques, without finding room for another stand.

Included Components:
  • Triad T1 short (17″-29.5″) stand
  • Orbit 1/O1 (21″-37.75″) orbital boom
  • Micro 1/M1 long-stem orbital mic hanger
Optional Components:
  • IO-Vector Stereo Utility Bar multi-mic mounting system
  • Micro 1/M1 long-stem orbital mic hanger

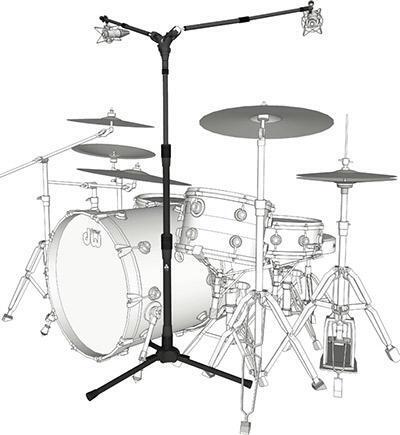

Drum Overhead System

TOPack2-large-md

Learn more about the Drum Overhead System

One mic stand, two boom arms, and all the drum overhead mic placement options you need – this system has you covered! From tight XY configurations to positions up to 61.5″ wide, the Orbit 2/O2 dual-arm orbital boom makes stereo overhead miking easy. When you add a couple Micro 2/M2 orbital mic adapters to the ends, it doesn’t matter if you’re using pencil condensers or heavy side-address ribbons, you’ll get perfect mic placement every time. All this fits on a single Triad T3 tall stand, which means you can comfortably set the mics over the middle of your drum kit, without crowding the drummer.

Want to cover your toms or other drums, without adding stands to your setup? No problem. Just add Triad-Orbit IO-C Clamps with Orbit Arm/OA boom bases, short boom arms, and Micro 2/M2 orbital mic adapters, and you can easily reach additional drums and key positions in your kit.

Included Components:
  • Triad T3 tall (31.5″-78.5″) stand
  • Orbit 2/O2 dual (20.5″-29.25″/arm) orbital boom
  • 2 Micro 2/M2 short-stem orbital mic adapters
Optional Components:
  • IO-C Clamp IO Quick-Change Coupler base
  • Orbit Arm/OA orbital boom base
  • IO-A2 Quick-Change boom arm (21.75″-31″)
  • Micro 2/M2 short-stem orbital mic adapter

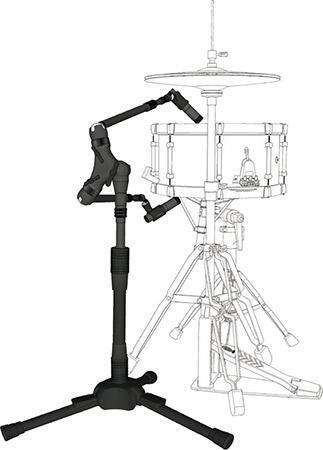

Dual Mic System

Triad-Orbit Dual Mic System Mic Stand Package

Learn more about the Dual Mic System

Drum top and bottom, guitar speaker cabinets, acoustic guitars, you name it – there are countless applications that call for a pair of microphones, and this system makes it easy. With two telescopic orbital boom arms, the Orbital 2/O2 dual boom offers a massive range of flexibility that lets you space out your microphones where you need them. Mounted on a single Triad T1 short stand, this boom can comfortably go where two stands can’t, making it ideal for crowded percussion rigs and drum kits, and it’s an absolute lifesaver for small studios and tight stages. Micro 2/M2 orbital mic adapters on either end provide that last bit of critical flexibility, allowing you to position your mics at completely independent angles.

If you need even more flexibility from your mic stand, then we suggest upgrading from the standard Orbit 2/O2 dual boom to the Orbit 2x/O2x. The Orbit 2x features two sets of detachable boom arms, offering you an extended range from 2.87″ (with the Orbit Arm base alone) to 27.75″ (the full extension of the longer boom arm).

Included Components:
  • Triad T1 short (17″-29.5″) stand
  • Orbit 2/O2 dual (20.5″-29.25″/arm) orbital boom
  • 2 Micro 2/M2 short-stem orbital mic adapters
Optional Upgrade:
  • Orbit 2x/O2x dual orbital boom

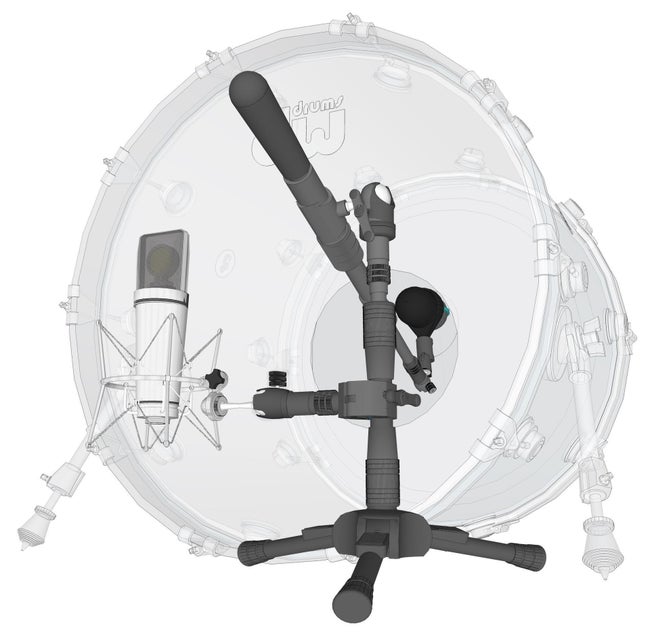

Complete Kick Drum System

Triad-Orbit Complete Kick Drum System Mic Stand System

Learn more about the Complete Kick Drum System

It doesn’t matter if you’re setting up live or in the studio, getting two stands in place to mic both inside and outside a kick drum is a bit of a pain, often forcing you to compromise on the ideal mic position. This system will let you place both mics on a single stand while providing you with the flexibility to position each exactly where you want. The Triad Mini/TM stand provides the right height for your kick, while an Orbit Mini/OM short telescopic boom with a Micro 2/M2 short-stem orbital mic adapter makes it easy to get inside the shell at any angle you need. Attach the IO-C Clamp and Micro 1/M1 long-stem orbital hanger directly to the stand, and you can position your outside mic wherever you need it to go.

Included Components:
Inside Mic
  • Triad Mini/TM (14.5″-25.25″) stand
  • Orbit Mini/OM (12.2″-21.62″) orbital boom
  • Micro 2/M2 short-stem orbital mic adapter
Outside Mic
  • IO-C Clamp IO Quick-Change Coupler base
  • Micro 1/M1 long-stem orbital mic hanger

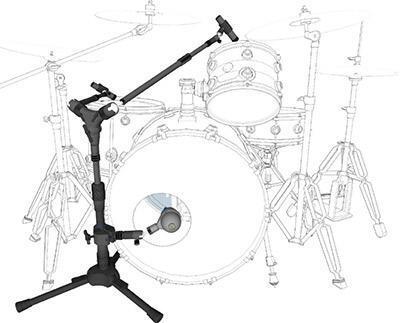

Kick and Dual Tom System

Triad-Orbit Kick and Dual Tom System Mic Stand Package

Learn more about the Kick and Dual Tom System

This mic-mounting system covers the center of a typical drum kit with only a single stand, by placing a kick drum and two mics in the center of your kit, right where you need them. The system itself is simple. At the center of it all is a Triad T1 short stand, which places the Orbit 2/O2 dual orbital boom in easy reach of your rack toms or other instruments. A Micro 2/M2 short-stem orbital mount at the end of either boom lets you place your tom mics in the perfect spot. If you want to cover more toms or other percussion, simply upgrade this system with IO-Vector Stereo Utility Bars and extra Micro 2/M2s.

An IO-C Clamp provides an additional mounting point for another Micro 2/M2, which you can position at an optimal distance from your kick drum. Want to expand the system so you can add bottom-head mics or another mic inside your kick? You can easily add more mics by attaching additional IO-C Clamps with Orbit Arm/OA boom bases, short boom arms, and Micro 2/M2 orbital mic adapters.

Included Components:
Toms/Kit
  • Triad T1 short (17″-29.5″) stand
  • Orbit 2/O2 dual (20.5″-29.25″/arm) orbital boom
  • 2 Micro 2/M2 short-stem orbital mic adapters
Kick
  • IO-C Clamp IO Quick-Change Coupler base
  • Micro 2/M2 short-stem orbital mic adapter
Optional Components:
Extra Toms
  • IO-Vector Stereo Utility Bar multi-mic mounting system
  • Micro 2/M2 short-stem orbital mic adapter
Kick Inside
  • IO-C Clamp IO Quick-Change Coupler base
  • Orbit Arm/OA orbital boom base
  • IO-A2 Quick-Change boom arm (21.75″-31″)
  • Micro 2/M2 short-stem orbital mic adapter

Stereo Piano System

Triad-Orbit Stereo Piano System Mic Stand Package

Learn more about the Stereo Piano System

This system showcases the versatility of Triad-Orbit’s IO-C Clamp IO Quick-Mount Coupler base. Attach the IO-C Clamp to one of the stress bars in your piano’s frame. The IO-C Clamp attaches anywhere along your piano’s stress bars, allowing you to freely move around the soundboard. Between the flexible Orbit Arm/OA orbital boom base, the IO-Vector multi-mic mount, and a pair of Micro 2/M2 orbital mic adapters, you can easily aim up to three microphones anywhere inside the frame.

Included Components:
  • IO-C Clamp IO Quick-Change Coupler base
  • Orbit Arm/OA orbital boom base
  • IO-Vector Stereo Utility Bar multi-mic mounting system
  • 2 Micro 2/M2 short-stem orbital mic adapters

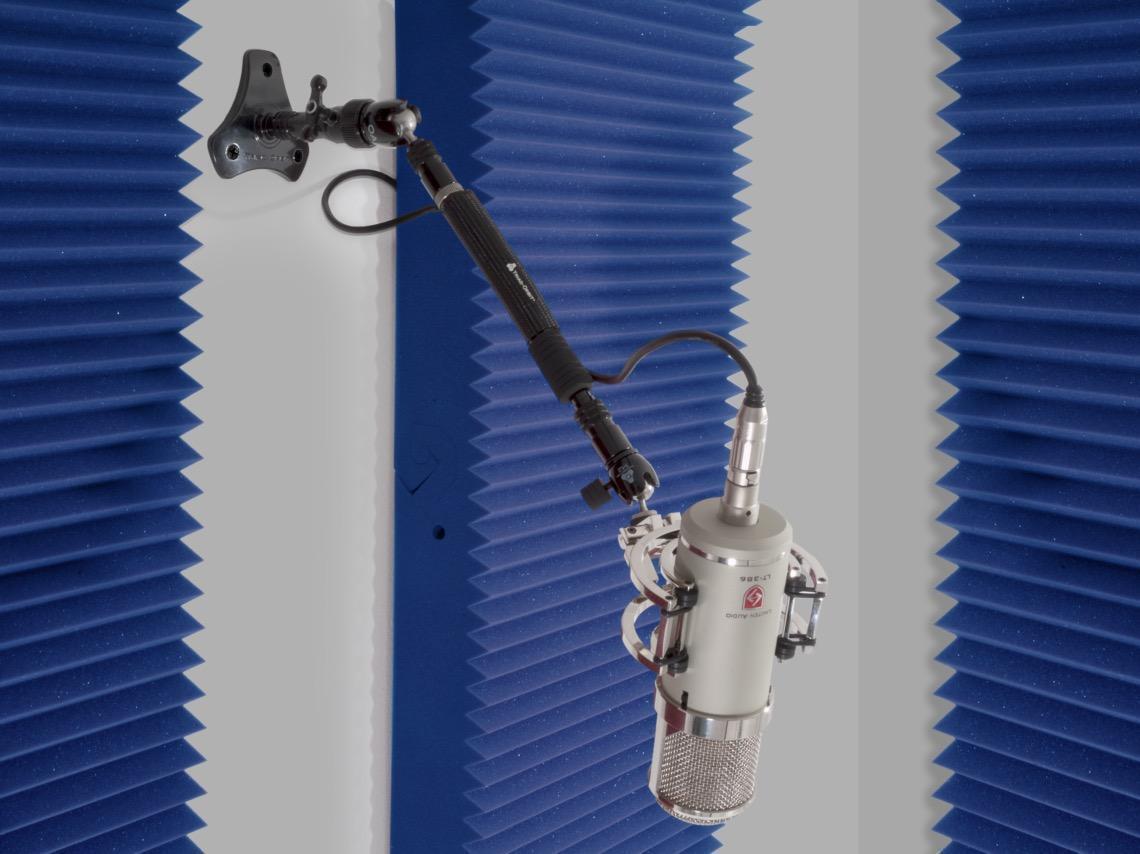

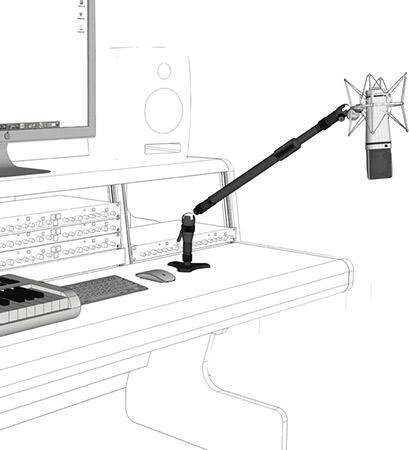

Installation Boom System

Triad-Orbit Installation Boom System Mic Stand Package

Learn more about the Installation Boom System

From professional broadcast applications to convenient control-room recording and ambient live-room mics, there are plenty of great reasons to mount a microphone boom to your desk, ceiling, or wall, and this system makes it easy. Start with the mounting bracket itself, the robust IO-W Wall Plate. Anchor this flat base wherever you like, and you’ll always have a secure IO Quick-Change Coupler right where you need one. The Orbit Arm/OA provides the included IO-A2 Quick-Change boom arm with a full range of positioning, delivering 31″ of reach at any angle. A Micro 2/M2 short-stem orbital mount adds a final touch of flexibility, allowing you to position your microphone at the perfect angle.

Included Components:
  • IO-W Wall Plate installation
  • IO Quick-Change base
  • Orbit Arm/OA orbital boom base
  • IO-A2 Quick-Change boom arm (21.75″-31″)
  • Micro 2/M2 short-stem orbital mic adapter

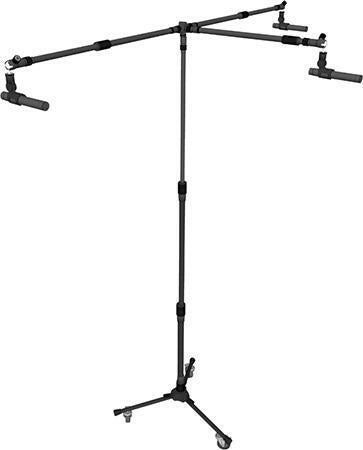

Decca Tree System

Triad-Orbit Decca Tree System Mic Stand Package

Learn more about the Decca Tree System

Triad-Orbit’s IO-Vector Stereo Utility Bar is one of the most innovative stand components Sweetwater has ever seen, and this system uses it to create a brilliantly simple Decca tree. At the base is the IO-Vector Stereo Utility Bar, which provides you with three configurable IO Quick-Change mounting points. Set them in a T formation, attach the three IO-A2A aluminum boom arm extensions, add a Micro 2/M2 short-stem orbital mount to the end of each, and you instantly have a Decca tree mic stand.

Traditionally, Decca trees need to be suspended high above the conductor, but with the Triad T3C tall stand and optional T-ES Elevator Shaft Stand Extension, you reach about nine and a half feet above the conductor. What’s more, the Triad T3C comes outfitted with a set of Triad TC Casters, which lets you roll this system into place and secure it.

Included Components:
  • Triad T3 tall (31.5″-78.5″) stand with Triad TC Casters
  • IO-Vector Stereo Utility Bar multi-mic mounting system
  • 3 IO-A2A aluminum boom arms (15.5″-24.8″)
  • 3 Micro 2/M2 short-stem orbital mic adapters
Optional Upgrade:
  • 33″ T-ES Elevator Shaft Stand Extension

Design Your Own Triad-Orbit System

These examples should provide you with a good idea of what Triad-Orbit products can do, but they are only a few of the many ways you can put them to work for you. Every studio and live sound rig has its own unique challenges, and if you need a special stand system to handle yours, then give your Sweetwater Sales Engineer a call. We’ll be happy to work with you to put together the custom Triad-Orbit system you need.
