TASCAM US-HR Quickstart Guide

Getting started with the TASCAM US-HR interface

In this guide, we’ll show you how to register, set up, and connect the TASCAM US-HR series interface for the first time. Follow the instructions below to get started.

1. Register the TASCAM US-HR interface
   • Register Cubase LE and SampleTank 4 SE
2. Download and install the standalone software
3. How to set up and connect the interface

Register the TASCAM US-HR interface

When you open the box, the first thing you’ll need to do is register the device with TASCAM. Once you register the interface, you’ll get exclusive content and product support from TASCAM. Keep your Sweetwater invoice handy, as you’ll need that during the process.

All you need to do is go to the TASCAM product registration page and fill out the information, including the purchase date and the serial number of the interface.

Register Cubase LE and SampleTank 4 SE

When you register your TASCAM US-HR interface, you’ll receive a free copy of SampleTank 4 SE, Cubase LE, and Cubasis 3 LE, as well as a three-month subscription to Auto-Tune Unlimited. The registration card should come in the box with your interface. The download and installation process is straightforward, so check out our article to learn how to activate Steinberg software and activate IK Multimedia software.

Return to top

Download and install the standalone software

NOTE: The standalone software is not available for iPad or iOS devices

Before connecting the interface to your computer, you’ll first need to download and install the TASCAM interface’s standalone software. The software allows you to update I/O and direct monitoring settings, view device information such as the current playback sample rate, and update power and Broadcast volume settings.

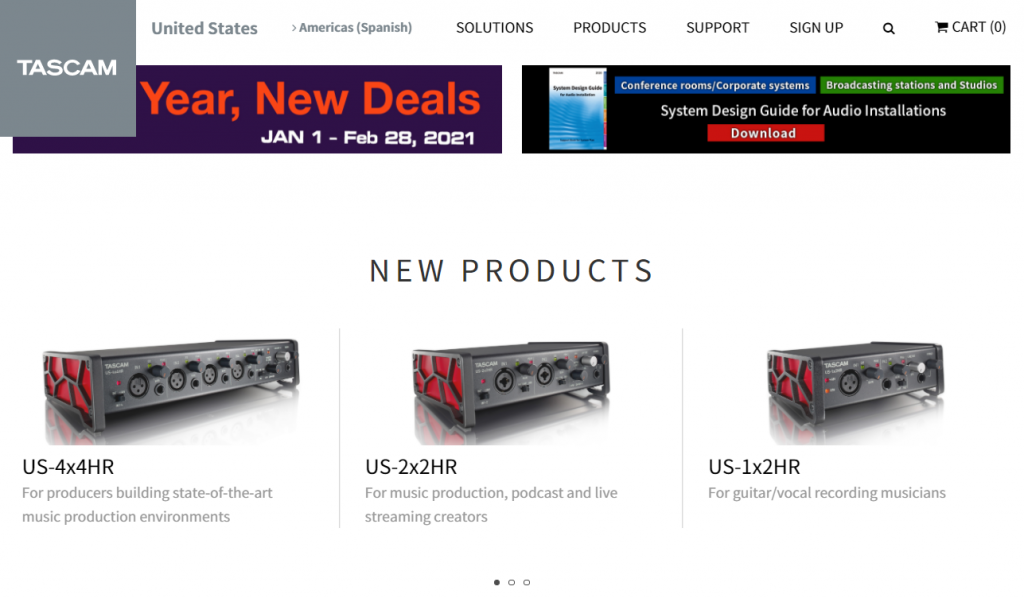

1. Go to the TASCAM product page, then navigate to and select the US-HR interface you’re using.
2. Click Downloads, then download the Settings Panel application for your OS.
3. Go to your Downloads folder, then extract and launch the installer file.
   • PC: Right-click the us-hr_settingspanel_vxxx_win.zip file, select Extract all…, and then click Extract. Open the decompressed folder, double-click the extracted .exe file, and follow the on-screen instructions.
   • Mac: Double-click theus-hr_settingspanel_vxxx_mac.zip file to unzip it and double-click the .dmg file. In the window that appears, double-click the .pkg file and follow the on-screen instructions.

Return to top

How to set up and connect the interface

Now that everything is taken care of, it’s time to set up and connect the interface! The interface can be bus-powered while using it on your computer, but if connected to an iOS device, you will need to use the included power supply. We do recommend connecting it directly to your computer, as USB hubs may not be able to transfer data and power fast enough, resulting in connectivity issues.

1. Turn the LINE OUT 1-2 knob down, then connect your speakers.
   • If you plan on using headphones, turn its volume knob down, as well.
2. Connect the USB cable from the interface to your computer, then power it on. The USB LED on the interface will light up.
3. Navigate to your OS sound settings and set it as the default input and output device.
   • PC: Right-click the Speaker icon on the Windows taskbar, select Sounds, then click the Playback tab. Locate and select the interface, click Set Default, then click OK to close the menu. Do the same in the Recording tab.
   • Mac: Click the Apple icon from the Menu Bar and select System Preferences. Click Sound, then select the US-HR interface under both the Input and Output tabs.
4. If applicable, connect your headphones to the jack on the front.
5. Play some music or a video, and slowly turn the LINE OUT 1-2 (and headphone if applicable) knob up until it’s at your desired listening level.
6. Launch your DAW, select your interface as the primary playback and recording device.
7. Create an audio track, begin recording, and use the Monitor Balance knob to balance out what you hear.
   • The more the knob is turned towards Input, the more you’ll hear yourself (and less of what’s being played back.)

Is your interface not showing up?

If the interface isn’t showing up when connecting it to your computer, reconnect the interface by unplugging and plugging it back in. If you have not done so yet, try reconfiguring the USB connections so that the TASCAM interface is connected directly to your computer. If the problem persists, try a different USB port or cable. Visit our Windows and Mac guides for more tips on resolving audio device connectivity.

Return to top
