How do I set up two Slate Media Technology Ravens?

DUAL RAVEN SOFTWARE:

If using two RAVENs, users now have access to the “DUAL” button on the RAVEN opening menu, which will activate the RAVEN Software for DUAL functionality. This is only is to be used with two RAVENs. If using multiple displays that are not RAVENs, you should still use the regular version of the RAVEN software.

DUAL CALIBRATION:

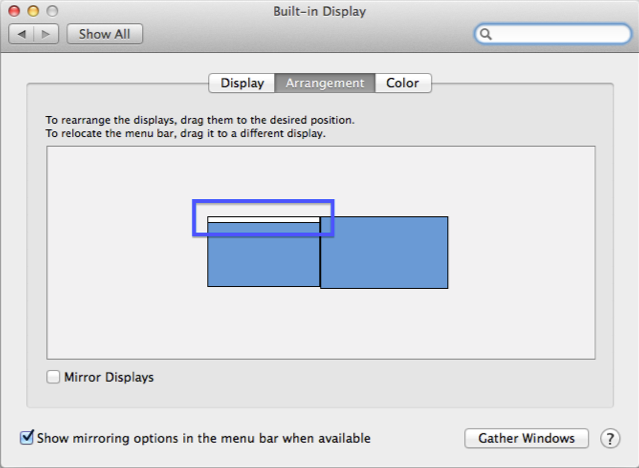

To calibrate for DUAL RAVENs, set your main display to the left display as displayed below.

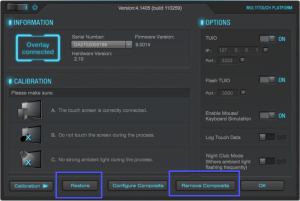

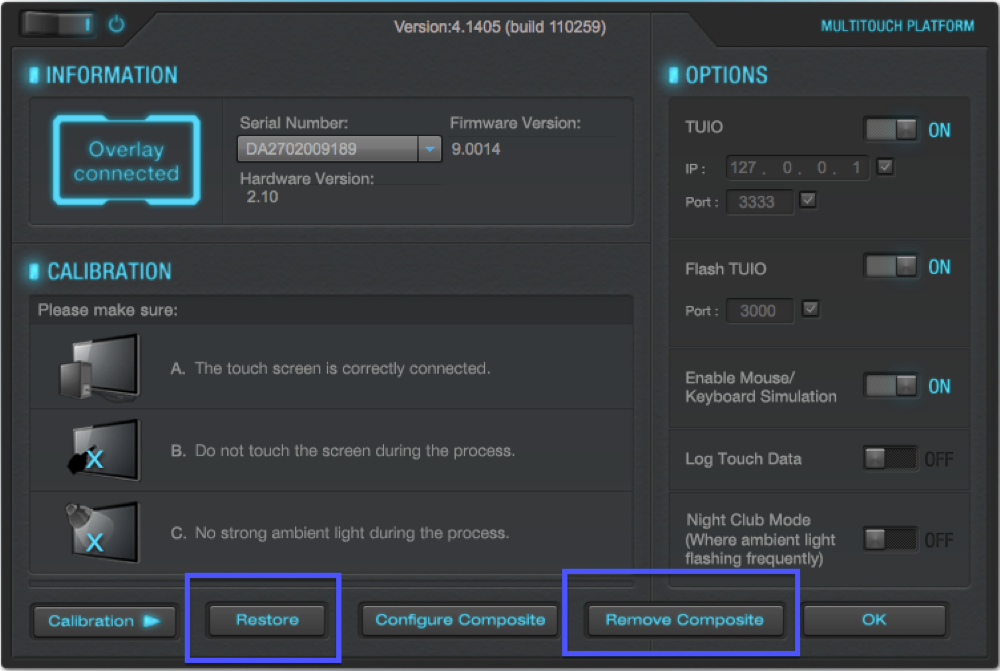

Then, launch the MultiTouchPlatform application and hit “Remove” and “Remove Composite” as displayed below.

Now, you will need to configure Multi-Touch for two RAVENs. Hit, “Configure Composite.” Follow the instructions on the white screens being:

Press and hold the left display and then release. Then repeat the press, hold and release for the right display.

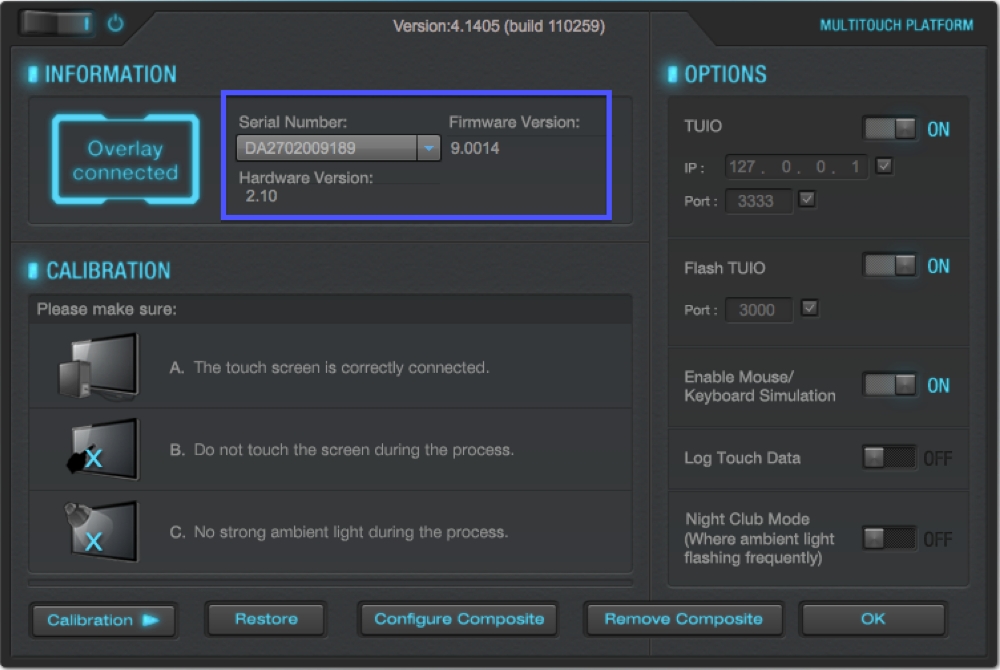

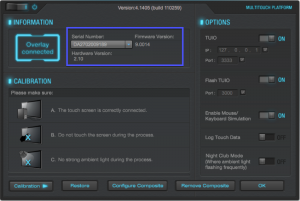

Now calibrate each screen. Use the drop-down menu as displayed below on the MultiTouchPlatform application to select each display and hit “Calibration.”

From a center, seated position, press and hold the center of the red addition symbol like you are giving a fingerprint to the top of your finger until it turns green, using your left hand for the left side of the screen and your right hand for the right side of the screen. There will be four corners to calibrate. Once completed, hit “Ok.”

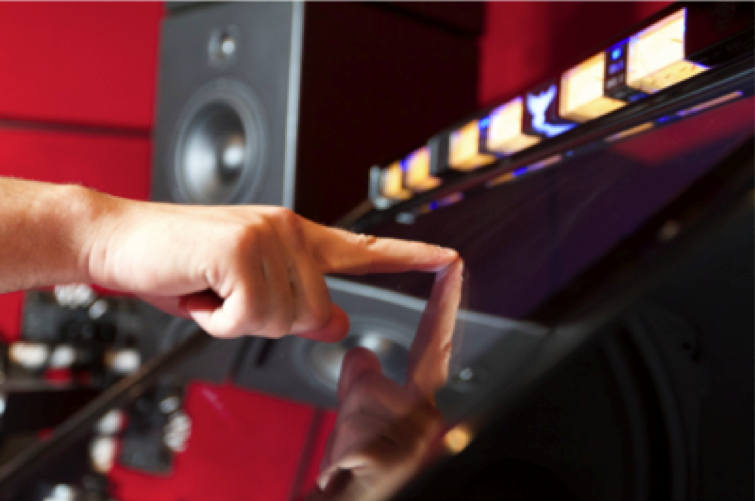

CORRECT CALIBRATION:

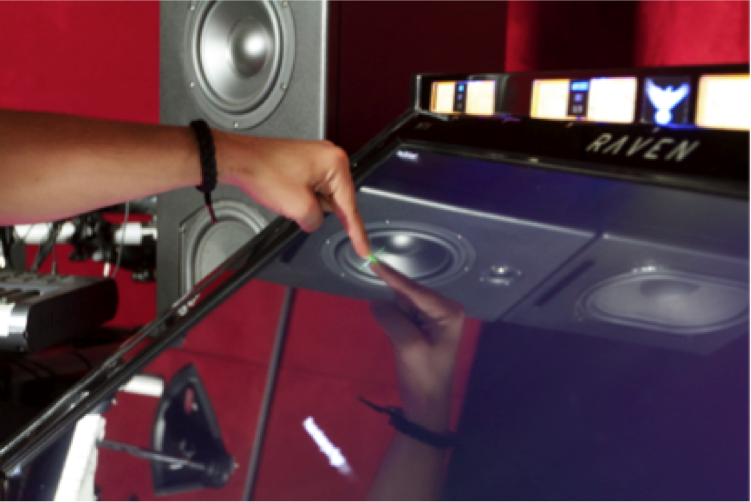

INCORRECT CALIBRATION:

USING RAVEN DUAL:

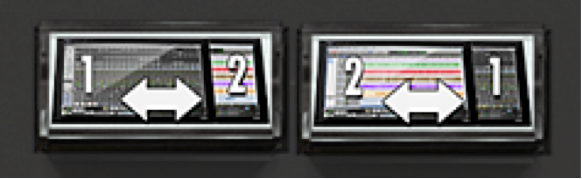

Set the Left Display as your Mixer and Right Display as your Edit Window. To flip the displays, simply hit the “1-2/2-1” display button by default on the Floating Toolbar.
