Focusrite is known around the world for producing high-level tools for the entire spectrum of music makers, from humble home setups to high-end, world-class studios. The company’s professional offerings deliver superior sound quality and have features demanded by professionals. The Focusrite professional lineup can be divided into three main ranges: Red, ISA, and RedNet. Firstly, the Red range is ideal for working in immersive audio formats, such as Dolby Atmos. Next, the ISA range is chock-full of amazing preamps descended from the iconic Forte consoles with optional Dante expansion cards. Finally, the flagship RedNet range flaunts Focusrite’s groundbreaking RedNet protocol, uncompromising conversion, ultra-smooth clocks, and the best audio quality you can get from a Focusrite. Every Focusrite professional product is built like a tank, provides high-quality audio, and is ready for years of heavy use in any facility.
Red Range
The perfect tools for Dante-enabled workflows
The Focusrite Red range provides studios with top-of-the-line digital conversion, mic pres, and built-in monitor controls turbocharged by Pro Tools | HD, Thunderbolt, and Dante interface technology. These products come loaded with low-noise, low-distortion Red Evolution mic pres, which leverage an ultra-linear design to deliver an outrageously accurate sound — no matter what you’re recording. Focusrite equips each Red-range offering with reliable low-latency drivers for effortless integration with most DAWs. Meanwhile, DigiLink Mini ports allow you to connect directly to Pro Tools | HDX, Pro Tools | HD Native, and Pro Tools | HD TDM systems. The Focusrite Red range has become a go-to for those working in immersive audio formats and proudly sits as the centerpiece in many immersive studios worldwide.
| Analog I/O | Number of Red Evolution Mic Pres | Controllable by RedNet R1 | Number of Dante Ports | Mini DigiLink Connections | Number of Thunderbolt 3 Ports | ADAT I/O Channel Count | Word Clock In/Out/Loop Sync | Dedicated Monitor Outs | S/PDIF I/O | |
| Red 8Line | 8-in/10-out | 2 | Yes | 2 | Yes | 2 | 16 | Yes | Yes | Yes |
| Red 16Line | 16-in/18-out | 2 | Yes | 2 | Yes | 2 | 16 | Yes | Yes | Yes |
Red 8Line
8 channels of analog I/O, 2 Red Evolution mic pres, DigiLink, and ThunderBolt 3 connectivity
The Focusrite Red 8Line Thunderbolt 3 with Dante is a rackmount audio interface boasting 58 x 64 connectivity. It’s the ideal front end for a Pro Tools | HD recording system and can also function as an I/O device for a Dante digital audio network. It comes equipped with a pair of Red Evolution mic pres, flaunts 121dB of dynamic range, and also includes eight channels of analog I/O. What’s more, it has top-quality converters that ensure every bit of information is preserved. Finally, you get ample connectivity to fit the modern studio workflow, including dual Thunderbolt 3 ports, Dante I/O, DigiLink, ADAT optical, and S/PDIF. With all of that connectivity, plus massive processing power under the hood, the Red 8Line is versatile enough to fit into any workflow.
Features:
- 32 channels of Dante, 8 channels of ADAT optical, S/PDIF coaxial I/O
- 2 Red Evolution mic preamps
- Ultra-low-latency digital conversion and round-trip latency
- Networked audio expansion over Dante
- L/R monitor outputs on TRS
Red 16Line
Two Red Evolution Pres, DigiLink and Thunderbolt, and 16 Channels of Analog I/O
The Focusrite Red 16Line Thunderbolt 3 is a 64 x 64 Pro Tools | HD and dual Thunderbolt 3 audio interface with ultra-low-latency AD/DA conversion, two Red Evolution mic preamps, up to 121dB of dynamic range, ultra-low round-trip latency, and 32 channels of Dante for networked audio. It’s absolutely dynamite for immersive workflows. As Red 16Line supplies both DigiLink and Thunderbolt connections, it’s very easy to switch between Pro Tools | HD and a second DAW without the need to reconfigure option cards in the interface. Simply change the host mode either in the remote control software or on the device’s front panel. Sixteen analog inputs and outputs are provided on rear-panel DB-25 connectors.
Features:
- 2 Red Evolution mic preamps
- Ultra-low-latency digital conversion and round-trip latency
- Networked audio expansion over Dante
- 16 channels of ADAT optical; S/PDIF coaxial I/O
- L/R monitor outputs on TRS
RedNet R1
Convenient control for Red-range interfaces
Gain full control over your Red audio interfaces with the Focusrite RedNet R1 desktop remote controller. This controller is designed to remotely control Red-range interfaces and simplify your audio workflow at the same time. It allows you to select, switch, and combine signals from any input and output across the entire network. Need to adjust the input level on a remote device? Reroute signals to different areas of the studio or manage a loudspeaker system? The RedNet R1’s 32 channels of Dante connectivity can make it happen. The RedNet R1 also has a built-in headphone output and talkback mic input that enable you to monitor any signal and communicate with artists anywhere in your facility.
Features:
- Compact desktop monitor for Red-range interfaces
- Remotely manages multiple devices and routes signals
- Built-in talkback mic
- Convenient digital metering
- Powered by PoE or included 12V DC power supply
ISA Range
No-compromise mic pres descended from legendary consoles
Focusrite created the ISA 110 for Sir George Martin’s Neve console at Air Studios in 1985. And ever since, the Focusrite name has been associated with no-compromise mic pres. The legacy of the original ISA 110 endures today within the Focusrite ISA range and in every mic pre the company designs.
The term “ISA” is an acronym for “Input Signal Amplifier.” Today’s range of Focusrite ISA products is directly descended from the original Focusrite Forte consoles of the late ’80s and the Studio Console the company developed in subsequent years. The core modules of those iconic consoles live on in the current range of now-classic ISA products. Each ISA offering includes a Lundahl LL1538 input transformer and a custom Zobel network, which only reinforces their sought-after sound.
| Number of Mic Pres | Number of Instrument Inputs | Input Impedance Switching | Variable Highpass Filter per Channel | Available Gain per Channel | Insert Send/Receive per Channel | Optional Dante Card | Cue Mix | |
| ISA One | 1 | 1 | Yes | No | 60dB | Yes | Yes | Yes |
| ISA Two | 2 | 2 | Yes | Yes | 60dB | Yes | No | No |
| ISA 428 MkII | 4 | 4 | Yes | Yes | 60dB | Yes | Yes | No |
| ISA 828 MkII | 8 | 4 | Yes | No | 60dB | Yes | Yes | No |
ISA One
Legendary console sound in a portable, 1-channel format
Take the legendary sound of a Forte console anywhere with the Focusrite ISA One desktop microphone preamp. This 1-channel mic pre is based on the original ISA 110 circuit and instantly imparts iconic sonic character into any signal. While the sound is nearly identical to the originals, this unit boasts a feature that the originals don’t: four selectable input impedances. This allows you to match a microphone to the input in whatever way you want. You can go clean and transparent or really bring out the character of a classic mic in your locker. There’s also a flexible and independent DI channel that’s active whenever the pre is active. The mighty ISA One’s mic- and instrument-level inputs run in parallel, so you can blend them to taste. Finally, it has a fully featured digital output section with main, DI, cue mix, and headphone outputs.
Features:
- 1-channel transformer-based preamplifier
- Compact and portable metal chassis
- Four switchable input impedance values
- Parallel mic- and instrument-level inputs
- Lundahl LL1538 input transformer
ISA Two
2 channels of iconic Focusrite console sound
The Focusrite ISA Two 2-channel microphone preamp takes the sonic architecture of the ISA One and reimagines it in an easy-to-use 1U rackmount unit. You get two channels of preamplification for mic-, line-, and instrument-level sources. This unit has a massive 80dB of gain on tap, which is more than enough to drive the lowest output ribbon microphones in any mic locker. Like the ISA One, the ISA Two includes variable input impedance, which enables you to tailor the preamp to better fit your microphone — even if that means breaking the rules to achieve the sound in your head. There’s also user-calibrated LED metering onboard.
Features:
- 2-channel transformer-based preamplifier
- Provides up to 80dB of gain
- Variable input impedance
- User-calibrated LED metering
- Lundahl LL1538 input transformer
ISA 428 MkII
4-channel rackmount preamp inspired by the Forte series
Simple operation and a space-saving 2U chassis make the 4-channel Focusrite ISA 428 MkII microphone preamp a no-brainer for studio use. Like all ISA preamps, this 4-channel mic pre is based on the classic Forte and Studio consoles. It delivers a massive 80dB of gain and comes with variable highpass filters on each channel to cut out rumble and unnecessary low-frequency information. Every channel delivers a warm and transparent sound, thanks to the variable input impedance. The streamlined control layout provides an uncluttered user experience without sacrificing performance. And on the back, you’ll find four A/D converter inputs with a 122dB dynamic range and low-jitter performance.
Features:
- 4 channels of classic transformer-based preamps
- Switchable input impedance
- Line-, mic-, and instrument-level inputs
- Ultra-accurate LED metering
- Classic Lundahl LL1538 input transformer
ISA 828 MkII
8 classic Focusrite preamps
Like the rest of its siblings, the 8-channel Focusrite ISA828 MkII mic preamp has a nearly identical reproduction of the classic mic pre circuit found on the original Focusrite studio consoles. This rackmount preamplifier has eight preamps with Lundahl LL1538 transformers on every input. You get mic and line inputs for each channel, plus four switchable input impedances for microphone matching. The ISA 828 MkII provides up to 80dB of gain, a fixed 75Hz highpass filter, and 6-segment LED meters. Finally, the ISA 828 MkII has dedicated connectors for mic- and line-level inputs, so all sources can be connected simultaneously. And did we mention that the ISA 828 MkII has a rear-mounted DB-25 connector for A/D inputs? And when paired with the optional Focusrite ISA ADN8 8-channel A/D card, this gives you high-precision digital audio conversion and switchable insert points.
Features:
- 8 mic pres
- 4 instrument inputs
- Up to 80dB of gain
- Switchable input impedance
- Lundahl LL1538 transformers on all inputs
ISA ADN2
2-channel A/D card with redundant network connectivity
Integrating an ISA-range microphone preamp with your existing Dante network is a walk in the park if you have a Focusrite ISA ADN2 2-channel A/D card. This A/D card offers two channels of high-quality digital-to-analog conversion at sample rates up to 24-bit/192kHz. You’ll enjoy Dante, AES3, ADAT, and S/PDIF connectivity. Additionally, word clock I/O enables synchronization with other digital sources in your studio.
Features:
- 2-channel analog-to-digital converter
- Achieves sample rates up to 24-bit/192kHz
- Redundant Dante connectivity
- Word clock I/O
- Includes RedNet Control and Dante Controller software
ISA ADN8
8-channel A/D card with redundant network connectivity
With the Focusrite ISA ADN8 8-channel A/D card, you can make any of your ISA-range microphone preamps compatible with Dante. It’s an 8-channel analog-to-digital card with redundant network connectivity, so you’ll always be connected to the network. The ISA ADN8 supplies professional-level sample rates of 24-bit/192kHz, ensuring that all of the preamp’s information is preserved before sending it over the digital network. This card has RJ-45 Dante outputs, an AES59 DB-25 connector for AES3 output, plus two TOSLINK connectors for ADAT output.
Features:
- 8-channel analog-to-digital card
- Redundant RJ-45 Dante connectivity
- Provides sample rates up to 24-bit/192kHz
- 8-channel AES59 DB-25 output connection for AES3
- Comes with RedNet Control and Dante Controller software
RedNet Range
The simplicity of Ethernet. The sound of Focusrite.
RedNet is Focusrite’s groundbreaking audio-over-IP system. Built on the powerful Dante protocol, Focusrite RedNet is ideal in any environment where pristine audio and extremely low latency over a network are required. Scalable and versatile, RedNet harnesses the simplicity of Ethernet to build audio network systems that range from a small facility with one or two recording spaces to large studios with multiple recording spaces and control rooms. RedNet is also great for live performance venues and outdoor spaces, such as concert halls, houses of worship, arenas, and stadiums.
Performance
Focusrite-quality audio
RedNet forms a scalable audio distribution system that combines premium, versatile interfaces with the highest quality in sound and performance. RedNet features Focusrite’s industry-leading 24-bit AD/DA conversion technology with 24-bit operation up to 192kHz — all with virtually zero latency.
Connectivity
As simple as plugging in an Ethernet cable
RedNet leverages the simplicity and ubiquity of Ethernet to create 2-way, high-speed, latency-free audio networks anywhere. In buildings with Ethernet already installed, every room becomes a possible recording space, every space a possible control room. RedNet is also highly expandable, with onboard Dante protocol allowing a single network link to handle up to 512 x 512 channels (I/O) at 48kHz.
Control
Incredibly flexible, incredibly easy
RedNet Control software is ideal for controlling and configuring interfaces. Numerous functions of a RedNet system can be set, including preamp gain, reference level, clock source, preferred master clock, sample rate, and much more. Run it on your main control room computer or your laptop to move around the facility. Anywhere there is an Ethernet connection, you can be in control of the network.
RedNet X2P
Your compact Dante interface solution
The RedNet X2P — adding I/O to your Focusrite Red interface or Dante audio-over-IP system couldn’t be easier. The Focusrite RedNet X2P is a compact 2 x 2 Dante audio interface fitted with two Red Evolution mic preamps, a stereo line out, and a stereo headphone amp. A single Ethernet cable provides power, audio, and remote control (powering via Ethernet requires an optional Power-over-Ethernet switch, or PoE injector). The RedNet X2P features a rotary input mix fader that lets you adjust the level of local inputs relative to network inputs. Control lockout allows you to leave the unit with your artists, letting them fine-tune their headphone mix and level and feeling confident they won’t accidentally adjust mic gain.
Features:
- 2 Red Evolution mic preamps that supply generous clean gain
- Air effect that emulates the sound of Focusrite’s legendary transformer-based mic pres
- High-performance audio conversion with more than 118dB of dynamic range
- Flexible control lockout that protects your settings during remote use
- May be conveniently mounted directly to a mic stand
RedNet AM2
Your Dante monitoring solution
As a compact Dante-compatible stereo monitoring box, the Focusrite RedNet AM2 Dante stereo output device supplies headphone and line outputs for flexible monitoring of signals from your Dante network. The RedNet AM2 provides a convenient front-panel 1/4-inch TRS headphone jack that delivers robust level to both high- and low-impedance headphones, while two balanced male XLR line outputs on the rear panel accommodate monitoring on speakers or provide signal for other applications. The RedNet AM2 features a rugged, extruded-aluminum chassis with nonslip feet and a threaded base for mic-stand mounting.
Features:
- High-quality stereo Dante monitoring solution for headphones and speakers
- Superior D/A conversion for accurate, transparent-sounding audio
- Separate headphone and line-output level controls
- Line-output mute switch that kills signal to power amps or powered speakers
- Gigabit Ethernet switch for simplifying cable connection to a second device
RedNet A16R MkII
16-channel network audio interface with redundancy
The next-gen Focusrite RedNet A16R MkII is a 16-channel Dante audio interface designed specifically for networked audio. In addition to low-latency operation, the interface comes equipped with topflight AD/DA conversion, high-quality analog circuitry, and jitter-stopping JetPLL technology. What’s more, the expandable power of built-in Dante means it’s fully compatible with Focusrite RedNet, Red interfaces, and every other Dante-enabled device on the planet. You get individual input and output channel level controls, which allow you to tweak all I/O levels using Focusrite RedNet Control software. Are you working on mission-critical projects? No problem. The RedNet A16R MkII has both network and power supply redundancy with automatic switchovers to keep things running smoothly.
Features:
- 16-channel bidirectional analog interface for Dante networks
- High-quality AD/DA converters that offer a 119dB dynamic range
- Individual input/output channel level controls
- Power supply and Ethernet redundancy with auto switchover
- Hot-swappable and automatically configured when plugging into power
RedNet D16R MkII
AES3-RedNet bridge with power and network redundancy
If you’re managing a large sound system in a venue, an educational facility, or a studio complex, then you’re going to need a reliable way to manage it. The Focusrite RedNet D16R 16 x 16 Dante digital audio interface is destined to be just that. This interface gives you 16 channels of AES3 digital I/O, which are accessible from anywhere within your RedNet installation. What’s more, users can assign a unique sample rate to each input pair for greater source compatibility. With a RedNet D16R MkII, you can greatly expand your RedNet network via AES3.
Features:
- 16-channel bidirectional RedNet bridge
- Dual Ethernet ports and power supplies for redundancy
- Remote control over channel levels via RedNet Control
- Asynchronous sample rate conversion that allows the system to operate at different sample rates
- Front-panel LEDs for at-a-glance status updates
RedNet HD32R
Pro Tools / RedNet bridge with redundancy
Featuring redundant power supplies and redundant networking is the Focusrite RedNet HD32R 32-channel HD bridge that lets you connect your RedNet network to Pro Tools | HD or Pro Tools | HDX systems with optimized stability in demanding live sound and broadcast applications. The RedNet HD32R is easy to integrate with any Pro Tools rig. You can transmit up to 32 channels of audio over a single Ethernet cable; the RedNet HD32R unit bridges them into Pro Tools | HD via DigiLink. Connect multiple units for higher track counts while the RedNet HD32R syncs your entire RedNet system to incoming digital clock or word clock input.
Features:
- Provides ability to route up to 32 inputs and 32 outputs from your RedNet network direct into Pro Tools | HD via DigiLink
- Allows you to combine multiple RedNet HD32R units to maximize Pro Tools | HD I/O count
- Redundant networking via 2 Neutrik Ethercon locking network connectors
- Redundant power supplies for maximum system reliability in any environment
- Synchronizes your RedNet system to any incoming digital clock or a word clock source
RedNet MP8R
Maximum redundancy for live sound applications
With its redundant power supplies, network connectivity, plus convenient remote control via the RedNet network, the Focusrite RedNet MP8R 8-channel microphone preamp and A/D converter boasts cutting-edge Focusrite preamp technology plus the maximum reliability your live shows depend on. Ideal for live sound productions, large facility installations, and broadcast environments, the MP8R features split mic inputs with one direct feed that responds to that channel’s gain control, and a second feed with DSP gain tracking, which maintains a consistent output level for the second signal, irrespective of the analog mic gain setting.
Features:
- Ideal for live sound, broadcast, and large installations
- 8 high-quality Focusrite mic preamps, remote-controllable from any computer on the RedNet network
- Easy signal splits via each preamp channel providing 2 channels on the network
- Redundant networking via 2 Neutrik Ethercon locking network connectors
- Redundant power supplies for maximum system reliability in any environment
RedNet PCIeNX
High-performance Dante interface for Dolby Atmos and immersive audio
Purpose-built for Dolby Atmos and performance-critical, high-channel-count Dante applications, the Focusrite RedNet PCleNX PCle audio interface provides a staggering 128 bidirectional audio channels with vanishingly low latency. This audio interface is the top dog when it comes to immersive formats in commercial recording and post-production environments. If your projects demand 128 bidirectional channels of pristine, uncompressed audio and very little round-trip latency, then go with the RedNet PCIeNX audio interface.
Features:
- 128-in/128-out channel count at 24-bit/192kHz sampling rates
- Dual Ethernet RJ-45 connection for switched and redundant mode
- Effortlessly integrates between high-channel-count Dante and the Dolby Atmos renderer
- Low-latency operation
- Easily installed in a PCIe slot or Thunderbolt chassis
RedNet Control 2: FREE Download
Take control of every RedNet environment
At the heart of every RedNet system is RedNet Control. Compatible with both Mac and PC, this utility software gives you absolute control over up to 600 RedNet devices on your Dante network. RedNet Control has a tabbed interface similar to your Internet browser. A single tab holds up to 12 devices and can be customized to display your devices in a way that fits your workflow. Each configuration page lets you adjust a device’s sample rate, fan behavior, Grand Master nomination, and other device-specific parameters. The drag-and-drop Device List displays select RedNet devices with real-time indicators for levels and status. The flexible nature of RedNet Control allows you to logically and intuitively group devices according to location, function, or anything else you can imagine.
RedNet Control also features a MIDI bridge for situations that require more hands-on attention. This allows any programmable CC-based or SysEx MIDI controller to control up to 16 individual mic pre devices on your network. For example, you can map mic pre gain to an encoder for immediate tactile control. The CC protocol utilizes the same specs as the Avid Pre, which means you can control RedNet 4, RedNet MP8R, RedNet X2P, and the Focusrite Red range right from Pro Tools or other compatible Avid controllers. Finally, RedNet Control 2 allows you to save 16 device and session snapshots and recall them using a keyboard shortcut, MIDI Note, SysEx, or Program Change message for a mouse-free user experience.
Features:
- Controls up to 600 RedNet-enabled devices
- Tabbed-browser-like user interface that delivers detailed representations of your devices
- Remote control for RedNet MP8R and RedNet 4 mic preamps
- Channel-by-channel metering of audio levels
- Can save and recall 16 device and session snapshots
Sample Configurations

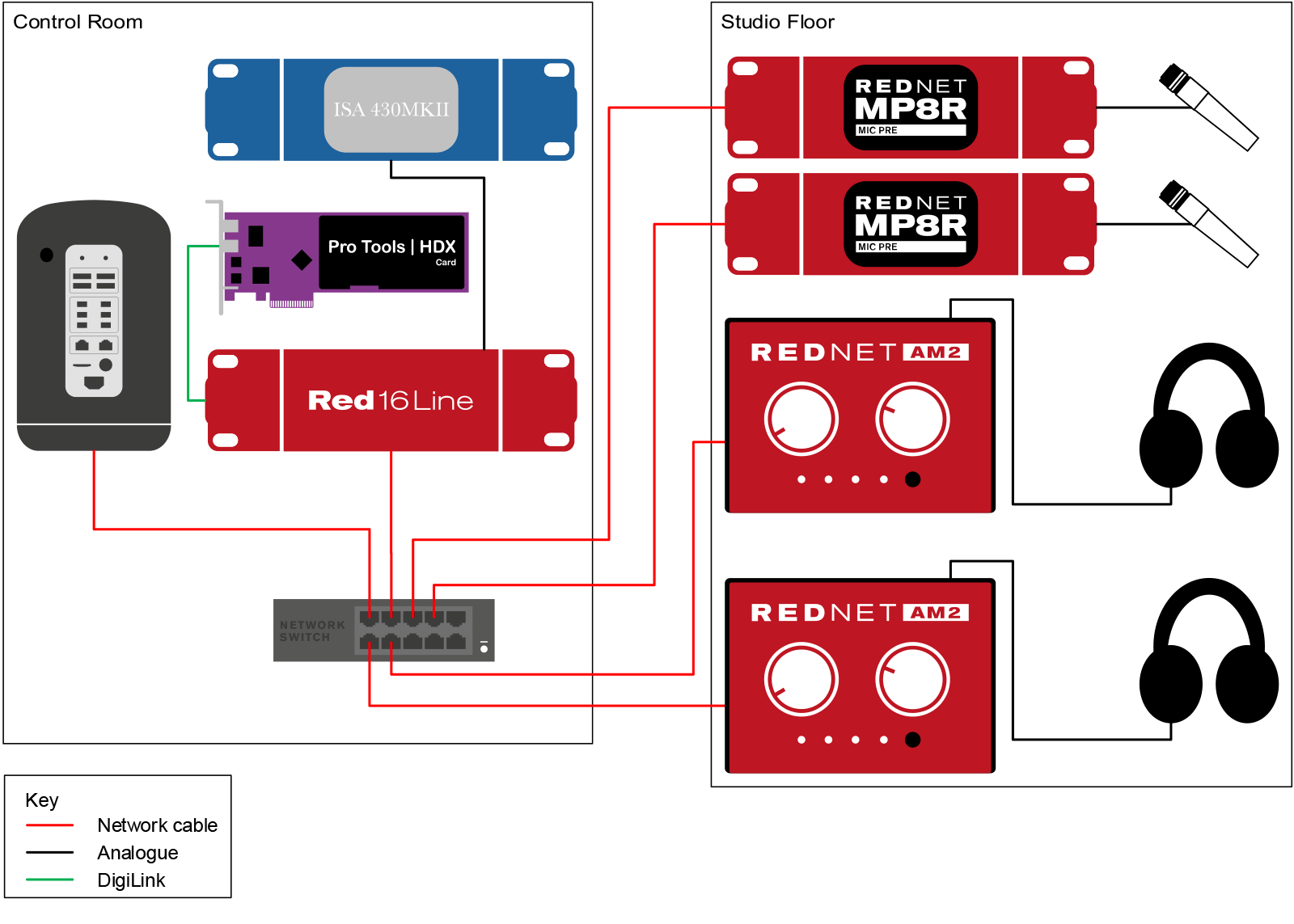

Pro Tools | HD Recording Studio Setup
For a 2-room Pro Tools | HD studio setup, RedNet allows seamless integration with the Dante network. Control room monitoring and line inputs are provided via a Red 16Line fitted with a Pro Tools | HDX card, fed by an ISA 430 MkII channel strip front end. In the live room, two RedNet MP8R units provide 16 channels of remote control mic pres, while two RedNet AM2 units provide artist monitoring. A network switcher is used for routing flexibility.
Simple Studio Setup
In this configuration, which uses a single network switch as its hub, the control room plays host to a Red 4Pre, connected to a computer via Thunderbolt and feeding powered monitors. In the live room, a RedNet MP8R provides eight preamps, while a RedNet X2P supplies headphone monitoring. Another X2P handles mic preamplification and artist headphone monitoring for the vocal booth.
House of Worship & Live Applications
RedNet is also scalable for use in larger facilities. For front of house, four RedNet MP8R units feed the console with 32 mic preamps. A RedNet AM2 provides headphone monitoring at the mix position, while a RedNet D16R feeds the PA speaker arrays. A RedNet A16R feeds powered speakers in a spillover room. Each switch in the system provides breakout/in on Ethernet ports to which all connections are made via Cat 6 cabling. For the recording studio, a feed is sent to a second switch, which is connected to a computer and a Red 16Line, which in turn feeds the studio monitors.

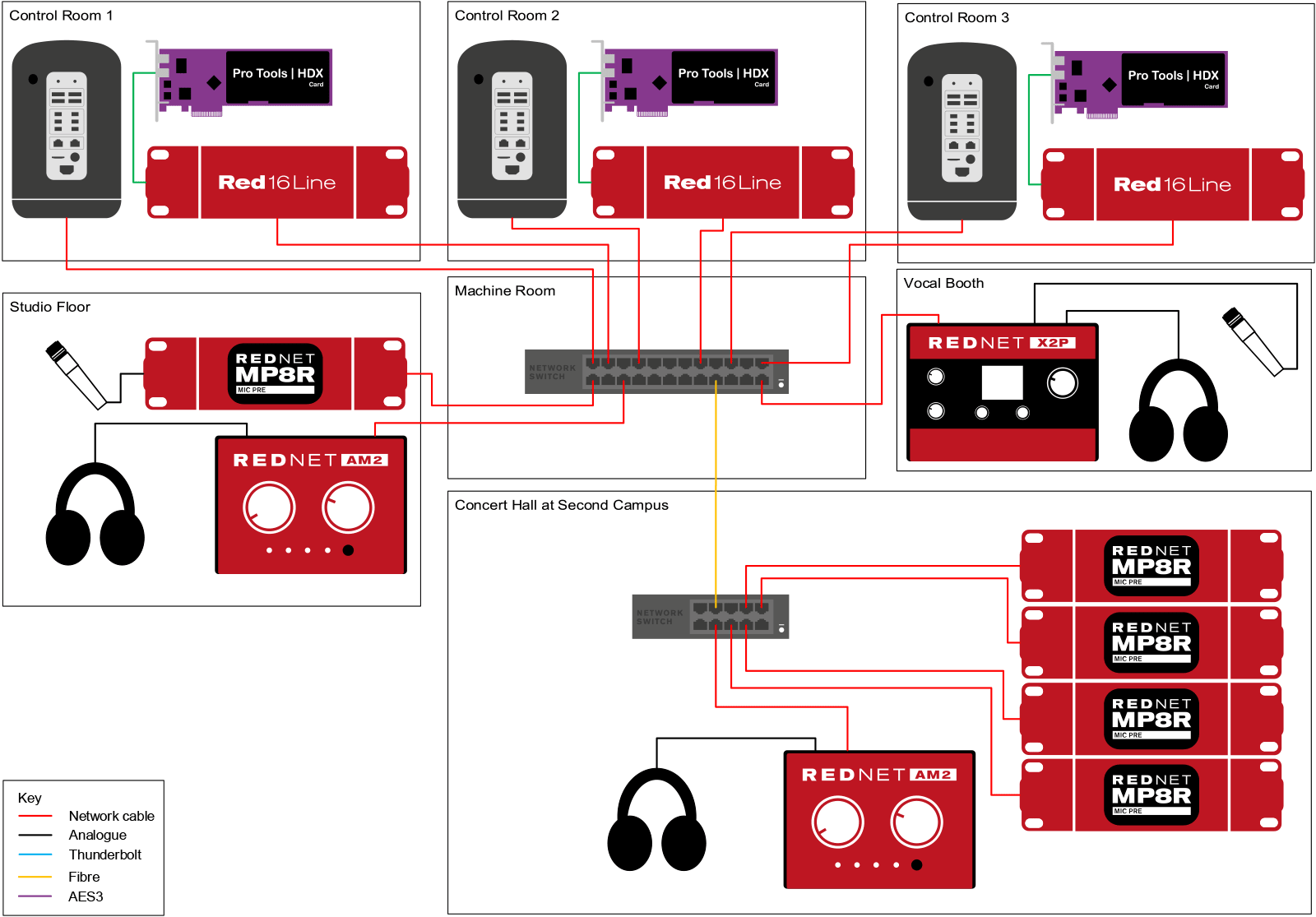

Multiroom Educational Facility
This facility has three control rooms, a machine room, a live room and vocal booth, and a concert hall at a separate location. The three control rooms each employ a computer and a Red 16Line fitted with a Pro Tools | HDX card, all feeding the network switcher in the machine room. In the live room, also connected to the machine room switcher, is a RedNet MP8R (with eight preamps) and one or more RedNet AM2 units for artist headphone monitoring. The vocal booth is outfitted with a RedNet X2P, which handles mic preamplification and artist headphone monitoring. At the concert hall, another network switch receives feeds from four RedNet MP8R units (for a total of 32 preamps) and a RedNet AM2 for local headphone monitoring. The remote switcher sends an output feed to the main machine room switcher.
There’s a Focusrite Professional Product for Everyone
The diagrams above represent common RedNet configurations, but as you may have already realized, the possibilities are virtually endless — limited only by your imagination. Whether you’re building a multiroom broadcast facility or upgrading your church or school with cutting-edge sound, there is a Focusrite configuration to fit your needs and budget. Overwhelmed? Not to worry! Sweetwater Sales Engineers are highly trained experts in the nuances of networked audio installations. Give them a call at (800) 222-4700, and you’ll soon be on your way to the state-of-the-art audio facility of your dreams.
