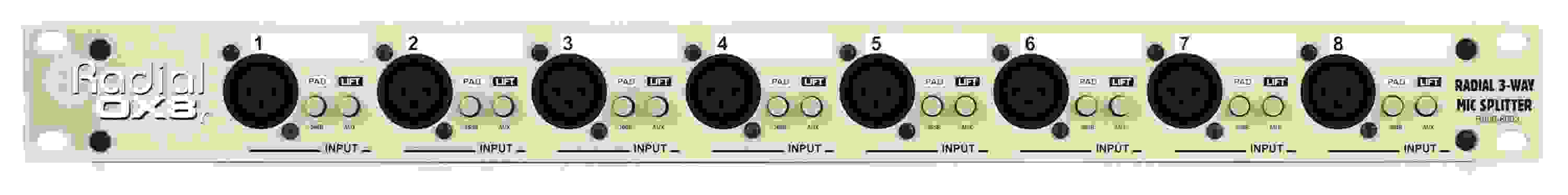

A Very Flexible and Tough 8-channel Mic Splitter Box!
The Radial OX8-r 8-channel mic splitter gives you convenience and high-quality performance, with the features you need for several types of applications. The OX8-r features an input and three outputs: a direct feed for 48V phantom return, an auxiliary feed with ground lift switch, and a transformer isolated output. It's ideal for microphone applications, but a selectable 36dB pad makes this box great for other signal sources as well, whether you're using it for live performances or in the studio. Housed in a heavy-duty steel enclosure, the OX8-r is built to last, too!
Related Videos: OX8-r 8-channel Microphone Splitter
- Ideal for mics and more
- A flexible box
- Passive design, heavy-duty housing
Although primarily designed for mic signals, the OX8-r is equipped with a -36dB pad for line level sources to suit all types of signal splitting. The OX8-r is particularly well suited to accommodate live recording by delivering a transformer isolated audio signal path for the recording engineer while providing a direct feed to the front of house and monitor consoles.
A flexible boxFor maximum flexibility, several connector options are available. Inputs may be accessed via the front panel, using standard XLRs, or the rear panel, with a choice of either 25 pin D-subs (wired to the Tascam standard) or Euro screw-down terminal connectors. Outputs include D-subs and Euro connectors, which are also located on the rear panel. These make it easy to connect to popular multi-track recording systems while providing easy termination for permanent installations.
Passive design, heavy-duty housingBecause it is 100 percent passive, the OX8-r does not require any power to make it work. Maximum durability is ensured with heavy duty 14-gauge steel construction throughout. The Radial OX8-r comes standard with Radial's custom-wound transformers.
Radial OX8-r 8-channel Mic Splitter Features:- Compact 8-channel multipurpose mic splitter
- Rear panel D-sub and Euro (Phoenix) screw terminals
- Ideal for live recording and signal distribution
- Custom Radial transformers
- 19" heavy-duty steel rackmountable enclosure
