The Definitive Evolution of Rupert Neve Console Design
The circuit topology of the Rupert Neve Designs 5088 console is like no other. With its uncompromised signal paths and custom transformers coupling every input and output (even the inserts), the sweet, musical sound and ironclad isolation you expect from a Rupert Neve design are guaranteed. For optimal signal amplification and control, all-new discrete high-voltage op-amp cards were developed for the 5088 that eliminate crossover distortion while delivering extended dynamic range, frequency response, and headroom. Equipped with Rupert Neve Designs’ state-of-the-art SwiftMix Automation System, the RND 5088 console is the definitive evolution of Mr. Neve’s vast expertise in analog circuitry design.
Related Videos: 5088 16-channel Analog Mixing Console with Automation - Shelford Finish
“When 90 volts course through discrete op-amp cards, custom transformers, and meticulously crafted Class A circuitry designed by the most trusted name in audio, the difference is immediately apparent.”
Certainly, this would be an audacious mission statement for any pro audio company — but for Rupert Neve Designs, it’s merely a statement of fact.
Legendary lineage
As Rupert Neve’s first fully discrete mix console design in over three decades, the 5088 includes — and improves upon — many of the same concepts he pioneered in the 1970s, such as the single-sided, fully discrete amplification and complete transformer isolation that made these designs so universally revered. But unlike many of those iconic, still-coveted classics, the 5088 does not require a full-time maintenance engineer.
Modular architecture
To be successful as a recording studio, stagnation is not an option — you have to continually adapt your equipment to the requirements of your next project. As the 5088 is completely modular, you can add or remove channel strips and Portico modules such as mic preamps, EQ, and dynamics to meet the constantly changing demands of your business and eliminate the enormous redundancies of vintage consoles — all while delivering sound without compromise, session after session.

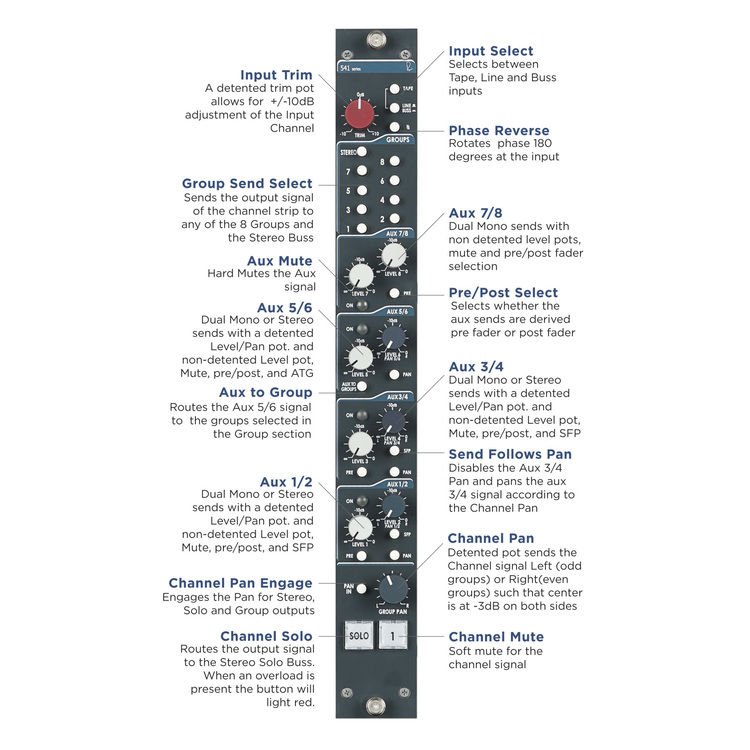

The input channel
Beyond its amazing sound quality, the 5088 channel strip is designed to effortlessly handle multiple normalled sources and let you efficiently create master, group, and aux mixes quickly and easily. With eight aux sends, eight groups, Solo, Mute, Send Follows Pan, Aux to Group, a transformer-coupled direct out, and optional motorized fader automation on each channel, even the most complex mixes are in play. To increase your 5088’s channel count without having to add an expansion chassis, you also have the option of adding Stereo Input Channels with all of the groups, six aux sends, stereo width control, and individual trims and pans.
The group channel
With four pairs of FX returns and aux master controls, high-quality 100mm faders, direct outs and transformer-coupled inserts for each of the eight mix groups, the group master section gives you control over four stereo stems while grouping together a selection of channel strips. If required, the insert returns and stereo FX returns may be used as 16 additional inputs for summing.

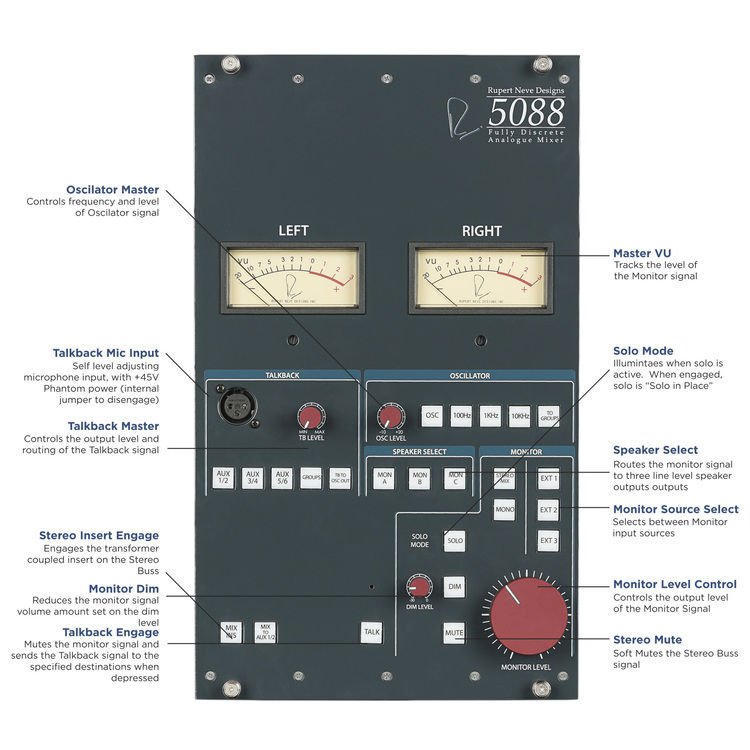

The monitor master
The monitor master section has six source selections, three transformer-coupled speaker outputs, plus talkback, oscillator controls, L/R master VU meters, stereo insert engage, monitor mute and dim switches, dim level, and control room monitor level. As do the channel and group modules, anodized aluminum knobs are fitted to provide the feel and response required for making fine adjustments with confidence.
SwiftMix automation
Built around the latest state-of-the-art motorized fader technology and DAW control over Ethernet, Rupert Neve Designs’ SwiftMix automation system enhances, streamlines, and accelerates your workflow with the precision and convenience of digital automation. Fortified with SwiftMix automation and the unparalleled analog sound of the Rupert Neve Designs 5088, your studio will be big-league competitive.
The legend continues
Rupert Neve’s 80 Series consoles had a huge, punchy, and authoritative sound that defined the sound of ’70s rock. From London to New York to Los Angeles and beyond, top studios were installing Neve boards as fast as they could. By 1977, with the introduction of the NECAM automation system, 80 Series boards were the main component of the success formula for any studio with world-class aspirations. Mr. Neve’s current company, Rupert Neve Designs, continues to advance the state of the art with cutting-edge products that sound incredible and intelligently address the challenges of the digital age. With your Rupert Neve Designs 5088 from Sweetwater, the legend continues.
Rupert Neve Designs 5088 Shelford 16-channel Analog Mixing Console with Automation Features:
- 5088 16-channel master, Shelford Blue
- 16-channel SwiftMix automation system
- MC5 SwiftMix master controller
- 25-slot penthouse frame
- 24-channel VU meterbridge, Shelford Blue
- 16 Shelford modules
- Width: 45.9"
- Depth: 41.33"
- Height: 22.9"
- Weight (loaded): 485 lbs.
- Exclusive 5-year warranty with Sweetwater
