A Compact System with Ultra-wide Coverage

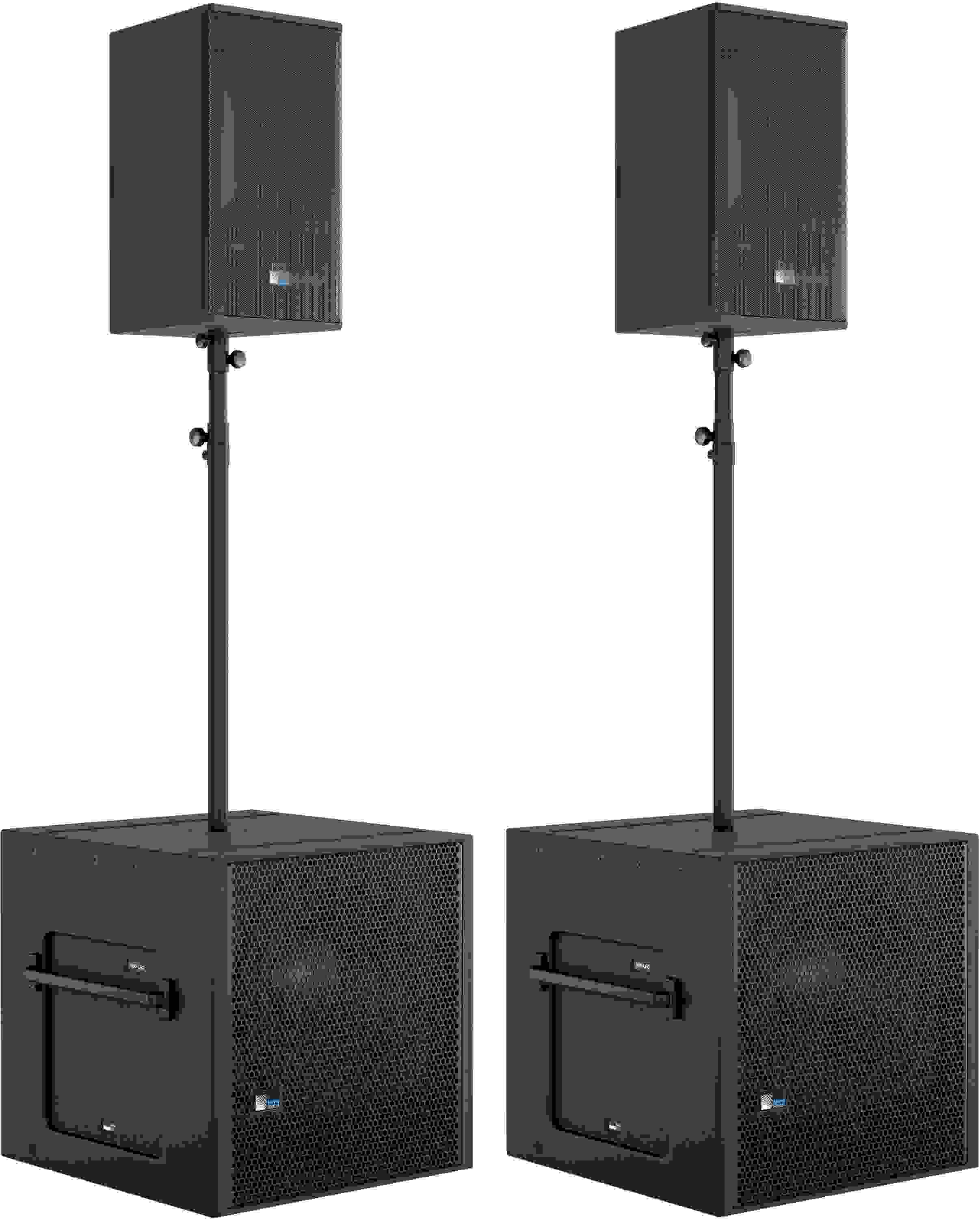

Filling a venue with high-output, low-distortion sound has never been easier than with this system from Meyer Sound. This dual-pole-mount, powered PA system includes two ULTRA-X40 loudspeakers, which are renowned for their stellar sound and out-of-this-world dispersion. You also get two 900-LFC Low-Frequency Control Elements, which deliver all the lean-and-clean bass you need. A pair of MPK-POLE speaker pole mounts rounds out this system. This system epitomizes Meyer Sound's renowned max-SPL, crystal-clear sound, and it's guaranteed to turbocharge any performance or event.

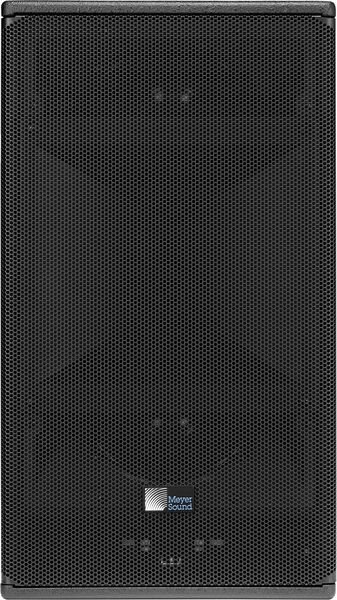

ULTRA-X40 Compact Wide Coverage Loudspeaker
This system includes two ULTRA-X40 powered loudspeakers. This speaker packs the technology breakthroughs of their line arrays into a compact powered loudspeaker. This active speaker's ultra-efficient Class D amplifier exhibits impressive output with minimal distortion. Its innovative concentric-driver configuration unleashes outstanding linearity and transient reproduction — even at high SPLs — while its rotatable 110-degree x 50-degree Constant-Q horn supplies wide, uniform coverage. ULTRA-X40 is the embodiment of simplicity, thanks to its self-powered design — no amp rack or long cable runs necessary. You also get cutting-edge onboard processing for easy system optimization, as well as built-in power conditioning and real-time system monitoring. This PA speaker includes 11 integrated M8 threaded points and a 35mm pole mount receptacle with M20 threads. Vaunting a tour-tough, multi-ply birch enclosure, the ULTRA-X40 is tailor-made for theme parks, worship venues, theater shows, lecture halls, and large-scale concerts.
Features:
- Class D amplifier delivers full-range sound from 56Hz–19kHz
- 138dB max SPL enables high peak power with near-imperceptible distortion
- Innovative concentric-driver configuration with dual 5-inch cone woofers and a 2-inch tweeter
- Rotatable 110° x 50° Constant-Q horn supplies wide, uniform coverage
- Simple self-powered design — no amp rack or long cable runs necessary
- Onboard processing with crossover, correction filters, and driver protection circuitry
- IntelligentAC automatically eliminates the need for an external power conditioner
- Permits you to monitor in real time with RMS remote monitoring
- Tour-tough aluminum enclosure with a textured black finish
- Rugged powder-coated, round-perforated steel grille
- Includes 4 integrated M8 threaded points and a 35mm pole mount receptacle with M20 threads
- Tailor-made for theme parks, worship venues, theater shows, lecture halls, and large-scale concerts
- 5-year warranty

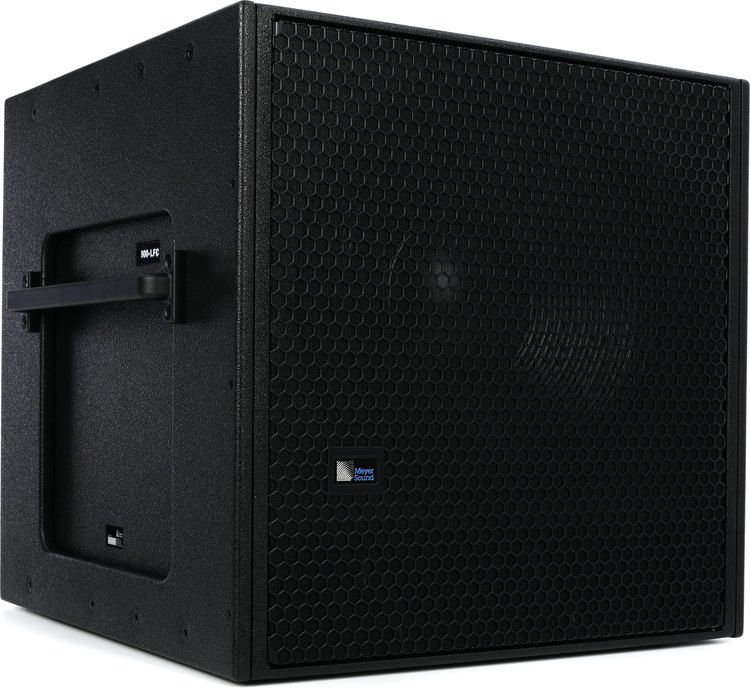

900-LFC Low-Frequency Control Element
This system includes two 900-LFC Low-Frequency Control Elements. This powered subwoofer injects your PA system with 3,100 watts of rafter-shaking low end — all the way down to 32Hz. This active subwoofer's ultra-efficient Class D amplifier exhibits impressive output with minimal distortion, and its 18-inch, dual-coil, long-excursion cone driver yields unbelievable linearity and crystal-clear transients at any volume. The 900-LFC is the embodiment of simplicity, thanks to its self-powered design — no amp rack, long cable runs, or crossover calibration required. The 900-LFC packs a lot of muscle into a compact cabinet. It pairs well with the included ULTRA-X40 loudspeakers. What's more, it's stackable and flyable in regular and cardioid arrays, with tilt and splay options. The Meyer Sound 900-LFC is tailor-made for clubs, theaters, houses of worship, theme parks, and a whole host of mid-sized applications.
Features:
- Class D amplifier delivers rafter-shaking low end down to 32Hz
- 133dB linear peak SPL enables high peak power with near-imperceptible distortion
- 18-inch, dual-coil, long-excursion cone driver yields linearity and clarity at any volume
- Simple self-powered design — no amp rack, long cable runs, or crossover calibration required
- Pairs well with the included ULTRA-X40 loudspeakers
- Stackable and flyable in regular and cardioid arrays, with tilt and splay options
- Compatible with MAPP 3D system design software and Galileo GALAXY loudspeaker management
- Permits you to monitor in real time with RMS remote monitoring
- Multi-ply hardwood cabinet, hex-stamped steel grille, protective plastic skids, and weather-protection options
- Stack 3 units together for easy transport via optional caster frame (sold separately)
- Tailor-made for clubs, theaters, houses of worship, theme parks, and a whole host of mid-sized applications
- 5-year warranty

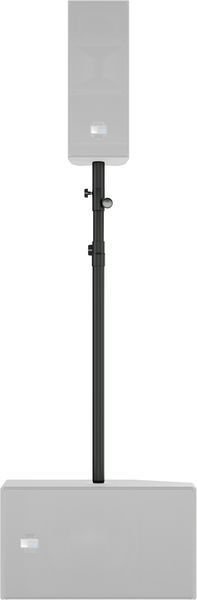

MPK-POLE Speaker Pole Mount
This system includes two MPK-POLE speaker pole mounts. These mounts provide an easy, efficient way to mount the included ULTRA-X40 loudspeakers on top of the included 900-LFC Low-Frequency Control Elements. The MPK-POLE's all-steel shaft telescopes from 36.5 to 60 inches, and it locks into position via a secure knob. You also get a removeable adapter sleeve that fits the ULTRA-X40's internal 35mm/M20 pole mount receptacle to bolster the connection. At Sweetwater, we appreciate the MPK-POLE's internal gas cylinder pneumatic lift, which gives you 40 pounds of lift assistance. The MPK-POLE also comes with an adapter for converting its bottom diameter from 35mm to 38mm.
Features:
- Mounts an ULTRA-X40 loudspeaker on top of a 900-LFC Low-Frequency Control Element
- All-steel shaft telescopes from 36.5–60 inches
- Locks into position via a secure knob
- Removeable adapter sleeve that fits the ULTRA-X40's internal 35mm/M20 pole mount receptacle
- Internal gas cylinder pneumatic lift gives you 40 lbs. of lift assistance
- Includes an adapter for converting its bottom diameter from 35–38mm
