Cinematic 6K Resolution and Unmatched Modular Efficiency
From solo operation to larger multicamera movie sets, DJI’s Ronin 4D-6K provides the absolutely stunning 6K cinematography potential, effortless compatibility, and remarkable ease of use that filmmakers depend on for efficient productions. The Ronin 4D-6K’s 8-element modular design comprises pro-grade componentry in one convenient build, including a Zenmuse X9 gimbal camera, a LiDAR range finder, a 5.5-inch high-bright main monitor, and dual hand grips. Its LiDAR Focusing System and 4-axis stabilization work hand-in-hand with CineCore 3.0 image processing and DJI Cinema Color Science to capture ridiculously vivid and steady cinema-grade footage, packing in effortless subject tracking and auto-focusing to boot. The Ronin 4D-6K’s functional flexibility extends even further with diverse lens compatibility, detailed monitoring adjustability, helpful storage and recording options, a thorough I/O terminal array, and up to an outstanding 2.5 hours of battery life. Our Sweetwater videographers are in awe — the Ronin 4D-6K is one of the heaviest hitters we’ve come across!
Modular and highly inclusive design

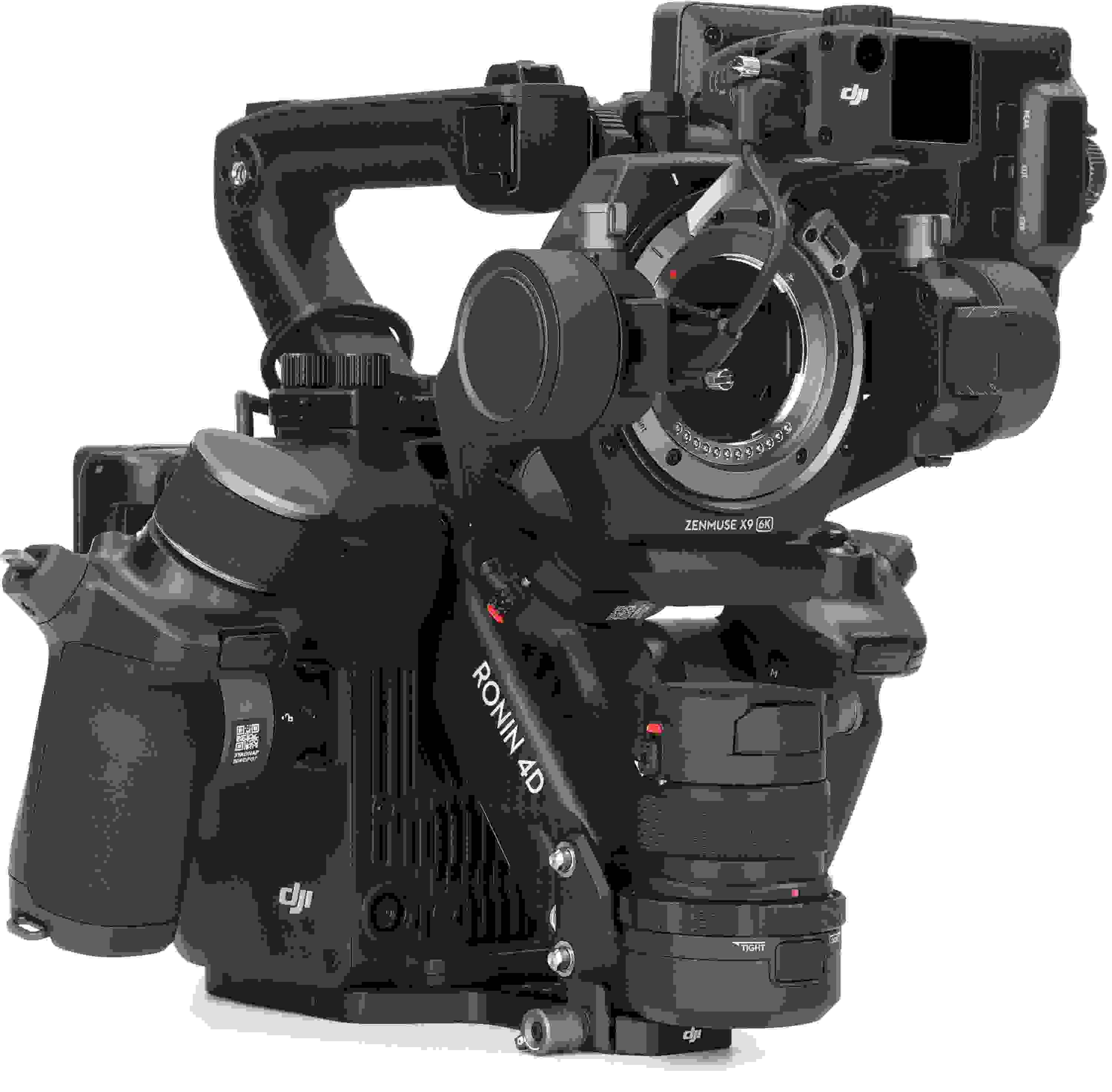

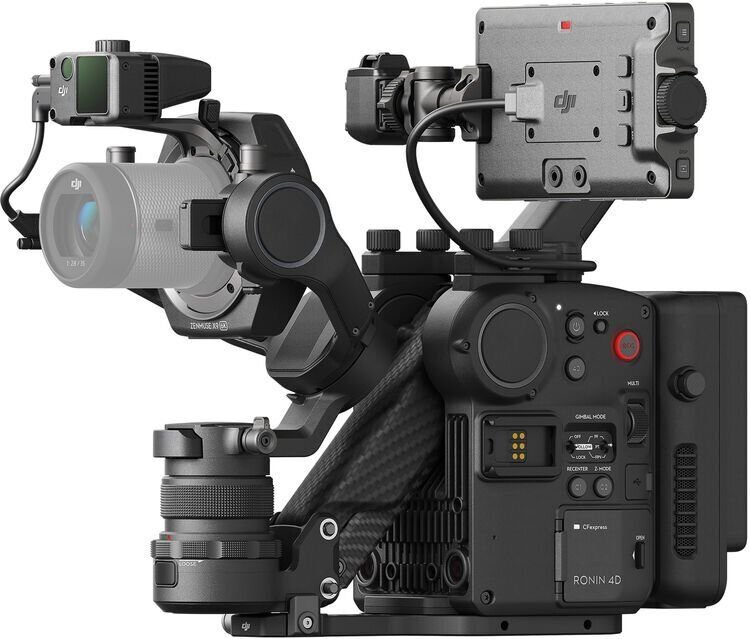

The Ronin 4D-6K features a modular design that brings together eight individual puzzle pieces crafted from carbon fiber and aluminum magnesium, offering lightweight and rugged operation that reduces complications and gets you filming faster. Its main body is met with the Zenmuse X9-6K gimbal camera and versatile high-bright main monitor, while the top handle and left- and right-hand grips offer superb options for command. Mounted at the rear is the long-lasting TB50 intelligent battery, rounded out with the LiDAR range finder mounted at the top of the Zenmuse X9-6K up front.
The in-the-box extras that accompany the Ronin 4D-6K are equally extensive. Get up and running with the LiDAR range finder cable, power adapter, TB50 charging adapter and battery mount, eight AC power cables, and a USB-A to USB-C cable. Apply the effortlessly compatible DL lens mount and base plate, and boost your ease of control with an X9 counterweight and hand grip extended control sticks and grip straps. All of this — in addition to a 1/4-20 screw, flathead screwdriver, a trio of hex keys, and a quartet of caps — fits perfectly into the Ronin 4D carrying case, prioritizing convenience for both storage and travel to and from sets.
Cinematic quality and color
Onboard, the full-frame sensor-equipped Zenmuse X9-6K camera works with a CineCore 3.0 processing system that fits top-tier computing into a small blueprint. In addition to internal recording support for multiple Apple ProRes codecs, including RAW, the Ronin 4D-6K is capable of recording with a gorgeous high-resolution of 6K/60 fps and a high-frame rate of 4K/120 fps to perfectly enhance every detail. The Zenmuse X9-6K also supports dual native ISO with an 800/5000 exposure index and respective 14.3 and 14.1 stops of dynamic range, providing vivid, noiseless delivery and transitions — even amid busy and dimly lit settings.
DJI Cinema Color Science (DCCS) applies a DCCS color engine, D-Gamut color space, and D-Log curve to the established CineCore processor for natural, human-eye-equivalent optics to bolster creative potential. Its ACES workflow support makes integration with various color systems from your multicamera setup perfectly fluid as well. Plus, with 9-stop ND filtering built-in, not to mention diverse DL prime and zoom lens compatibility to accommodate medium telephoto and ultra-wide capturing alike, the Ronin 4D-6K comes ready to match your creative energy with streamlined convenience.
Steady and crystal-clear captures
While its lifelike image quality passes with flying colors, so too does the Ronin 4D-6K’s integrated intelligent functions. With five sensors, an advanced algorithm, and onboard IMU and barometer appointments, the Z-axis-armed 4-axis stabilization of this camera poses unprecedented clarity and control while held and in motion. Its gimbal camera design gives operators the peace of mind to move freely about every take without stressing over the pollution of unsteadiness and sudden motion. From shooting while running or moving up staircases to cinematically smooth close-ups and tight-quarters captures, experience stability like you’ve only ever imagined.
The deep learning capabilities of the Ronin 4D-6K’s ActiveTrack Pro keep subjects the center of attention, even at longer distances. In the same vein, LiDAR Waveform and Range Management technologies ensure precise and quick focus point location and adjustment, casting up to 43,200 ranging points across 10 meters. Faster than traditional PDAF while better preserving subject quality, its LiDAR Focusing System offers auto-focusing for non-manual lenses and Automated Manual Focus mode to blend the versatility and precision of manual focusing with the powerful ease of auto-focusing.
Record and connect with ease

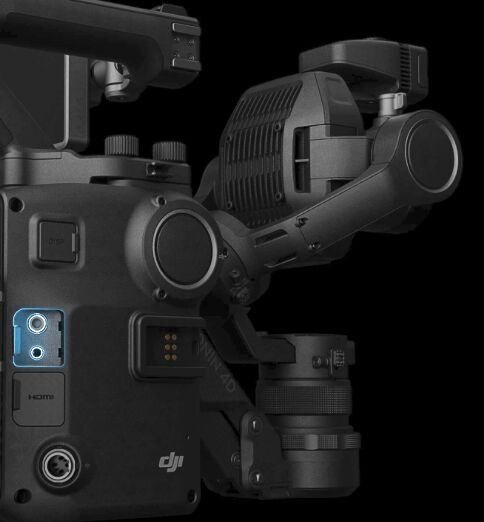

Cost-effective storage solutions start with a built-in CFexpress Type-B slot and a USB 3.1 Type-C expansion port for easy external media disk recording. With the aid of the separately sold DJI PROSSD 1TB, you can record internally and enable direct-to-computer connection over USB-C for quick access without needing an SSD reader. Additionally, you can easily output 4K/60 fps video over HDMI or effortlessly connect to a main monitor as well. Audio recording is just as versatile courtesy of onboard microphones with dual-channel, 24-bit quality, in addition to 3.5mm inputting. Opt for the 4D Expansion Plate, and you’ll even have dual XLR, 3G-SDI, and timecoding I/O terminals at your disposal.
DJI Ronin 4D-6K Features:
- Full-frame sensor-equipped cinematic gimbal camera with 6K/60 fps and 4K/120 fps internal recording
- 8-element modular design includes main body, Zenmuse X9-6K gimbal camera, main monitor, TB50 battery, LiDAR range finder, top handle, and dual hand grips
- Durable, lightweight build of carbon fiber and aluminum magnesium
- A wealth of included accessories makes setup and transport a breeze
- Zenmuse X9-6K and CineCore 3.0 processor offer internal recording support for multiple Apple ProRes codecs, including RAW
- Supports dual native ISO with an 800/5000 exposure index and respective 14.3 and 14.1 stops of dynamic range
- Stunningly lifelike imagery courtesy of a DCCS color engine, D-Gamut color space, D-Log curve, 9-stop ND filtering, and ACES support
- DL prime and zoom lens compatibility accommodates a huge range of lens options, from medium telephoto to ultra-wide
- 4-axis stabilization amalgamates 5 sensors, an advanced algorithm, and onboard IMU and barometer for maximum steadiness in the field
- Gimbal design supplies beautifully stable footage free of vertical shake, even while moving quickly
- ActiveTrack Pro, LiDAR Waveform, LiDAR Range Management, and LiDAR Focusing System offer crystalline, subject-centric enhancement
- Built-in CFexpress Type-B slot and a USB 3.1 Type-C expansion port allow for external media disk recording
- Internal recording with the help of the separately sold DJI PROSSD 1TB connects directly to computers via USB-C without needing an SSD reader
- 4K/60 fps video outputting over HDMI with additional main monitor output provided
- Dual-channel, 24-bit audio recording via integrated microphones with an additional 3.5mm accessory input
- Separately sold 4D expansion plate allows for dual XLR, 3G-SDI, and timecoding connections
