A Boutique Reimagining of a Single-ended Studio Staple
Capturing the overdriven attitude of music's most cherished Class A combo amplifiers, the Dr. Z PHD 110 takes the low-wattage, single-ended formula into the 21st century with expanded headroom and dynamic range. Tiny tube amps have reigned as studio secret weapons since the dawn of rock music for their ability to deliver raw, dynamic overdrive at reasonably low volumes. That said, for all their pint-sized power, most classic low-watters feature precious little headroom and a rather narrow bandwidth at high volumes. To rectify (quite literally) these historic challenges, the PHD 110 replaces the standard 3-tube tube complement of Fullerton’s 5-watt champions with an octal-based 6SL7 preamp tube, a KT 66 power tube, and a 5U4 rectifier tube. This configuration ups the PHD 110’s power to 10 watts, granting you pedal-friendly clean headroom without compromising on the even-order harmonics, dynamic feel, and early breakup that defines the single-ended recipe. Moreover, the good doctor rounded out the single-knob setup found on the most lauded single-ended amps with the addition of both a tone knob — inspired by an iconic Ivy League tweed amp — and a Master volume control that only bolsters the PHD 110’s early breakup potential. A lightweight and resonant poplar cabinet equipped with a punchy WGS G10 C/S speaker seals the deal, all adding up to a seamless blend of vintage attitude and boundary-pushing Dr. Z engineering.
Related Videos: PHD 110 10-watt 1 x 10-inch Tube Combo Amp
A champion of low-volume overdrive tones
It’s a well-known secret in the studio world that a cranked Class A amplifier delivers an arena-worthy overdriven tone when mic’d up in a mix. The good doctor himself recommends Joe Walsh and the James Gang’s "Funk 49" as a prime example, and just about every classic rock-obsessed gearhead will be quick to tell you that the ripping tone of Eric Clapton’s “Layla” was achieved with a humble 5-watt combo.
However, while countless guitarists champion low-watters for their tendency to break up at low volumes, most vintage 5-watt amps overdrive so early that there’s virtually no headroom to speak of. By increasing the wattage to 10 with a choice collection of valves, Dr. Z has ensured that the PHD 110 can deliver both classic tweed-style cleans and pushed power-amp attitude at reasonably home-appropriate volumes — especially when you factor in the amp’s addition of a top-shelf Master volume control.
Straightforward, vintage-inspired controls
Plug in, turn up, and play: that’s the MO behind the PHD 110’s no-nonsense control section. In fact, Sweetwater's vintage aficionados are quick to point out that the 5-watters that inspired the PHD 110 generally sported a single knob that controlled both the volume and tone, often leading to a somewhat narrow range of tones available at higher volumes. Dr. Z tackles these historic limitations with a double-pronged approach: upgrade the amp with a more robust tube assortment and integrate a dedicated Tone control inspired by a classic tweed 10-watter. The result is a clearer, more controllable sound across the board with expanded sonic flexibility.
Dr. Z PHD 110 Features:
- A boutique reimagining of the classic single-ended, Class A tube combo amp formula, upgraded by the good doctor with superior range and utility
- 10W design with Master volume allows you to capture raunchy overdriven tones at living room-appropriate volumes

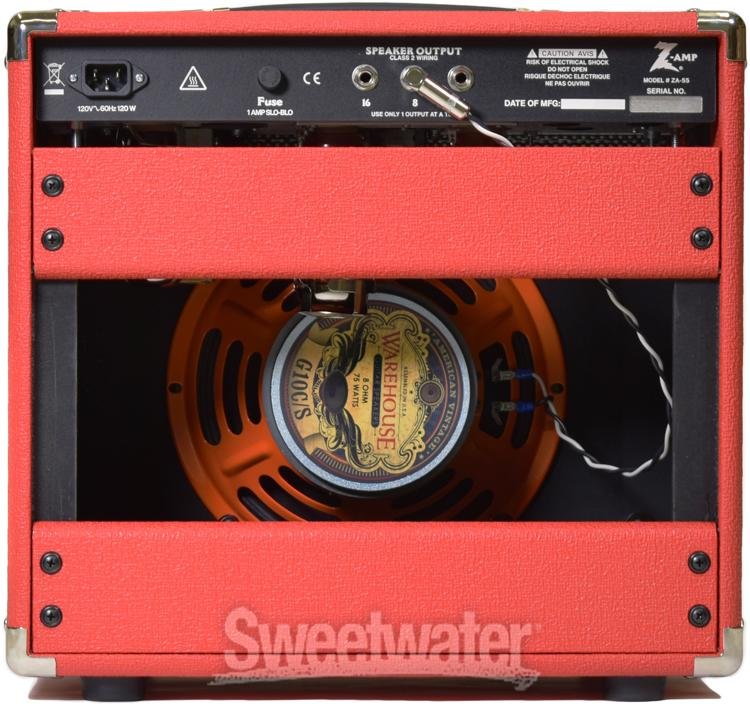

- Lightweight and resonant poplar cabinet equipped with a full and punchy-sounding WGS G10 C/S speaker
- Elevates the traditional champ-style, 3W tube configuration with a 6SL7 preamp tube, a Gold Lion KT 66 power tube, and a 5U4 rectifier tube
- No-nonsense control scheme comprises a Master volume, a Tone control, and a Volume knob to shape your sound
- Class A, low-wattage, single-ended design ensures a responsive and dynamic feel, along with ample even-order harmonics
- 3 output impedance options (4, 8, and 16) allow tone chasers to audition a vast variety of speaker styles
