Antelope Audio Zen Studio

Portable USB Audio Interface with 20 Analog Inputs, 12 Mic Preamps, Onboard DSP Effects, Multiple Monitor Mixers, and Mac/PC Control Software
Antelope Audio Zen Studio image 1
Antelope Audio Zen Studio image 1
$1,795.00
Sweetwater Savings: $500.00 MSRP: $2,295.00
Or make 3 easy payments

Or just $75/month§ for 24 months

0% interest for 24 months*. 24 equal monthly payments required. Valid through 6/25/2017. Learn more

Or make 3 easy payments of $598.33/month!

Plus $10 processing fee. Use any credit card! Sweetwater's Flexible Payment Plan lets you get your gear now and stretch your payments over time. Plus, we won't charge interest! Learn more

Or we have a demo model for just $1,615.00 ! Learn more
In Stock!
Available for immediate delivery!

Share this with your friends:

Most popular accessories & related items...

Antelope Audio Zen Studio
In Stock!
Hear the Zen Studio in Your Studio!

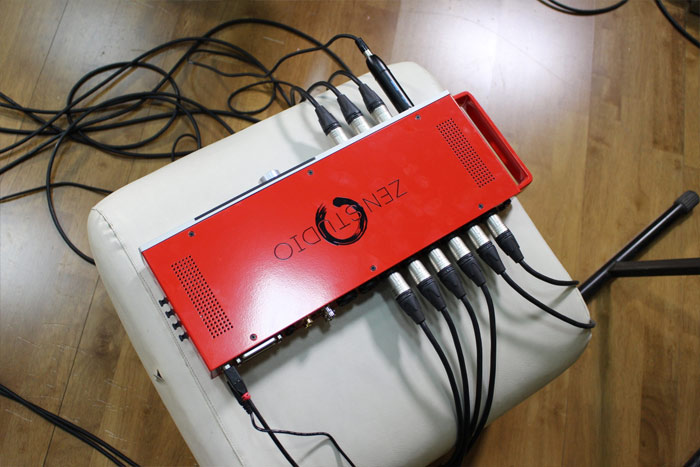

Creativity on the Go

The core of your professional portable studio

Never has so much outstanding audio quality and useful functionality been engineered into such a compact package! The Antelope Audio Zen Studio gives you full-featured audio interface, clock, preamp, and monitor controller functions in a svelte, road-ready chassis. Featuring 20 analog inputs, 12 world-class mic preamps, Antelope's peerless conversion and clocking, onboard DSP effects, multiple monitor mixers, custom high-bandwidth low-latency USB, and Mac/PC control software, the sleek, back-packable Zen Studio houses the powerful core of your professional mobile recording studio.

Antelope Audio Zen Studio at a Glance:

  • Amazingly "analog-sounding" conversion
  • Comprehensive mic pre, hi-Z instrument, and line input options
  • Parallel DSP and effects processing
  • Rock-solid zero-latency USB audio interface
  • Extremely flexible routing and mixing capabilities
  • Antelope's acclaimed clocking technology
  • Zen Studio Sweetwater Overview
  • Zen Studio Set Up Out of the Box
  • Zen Studio Control Panel Tour
  • Zen Studio Recording Miles Mosley
  • Zen & the Art of Audio
  • AuraVerb Reverb

Hover over features below for a detailed description

4 front-panel Instrument/Mic Preamp/Line inputs offer convenient inputs for instruments, microphones, or line-level sources
Power button toggles standby/operation state
Stepped attenuator for headphone and main output volume
Multifunction scrollable display works with the 2 option buttons to display peak meter, preference options, and input trim state
2 option buttons allow you to scroll up and down between 5 different option screens
Illuminated headphone indicator lights to indicate which headphone outputs are active
2 independently assignable headphone outputs, selectable and controllable via the main volume control knob
High-speed Type B USB; Zen Studio operates at sample rates of up to 192kHz with Antelope ASIO on Windows and Mac OS X
DC power connection for use with Antelope's DC power supply only
25-pin D-Sub TASCAM analog outputs let you attach 2 breakout cables, each with 8 channels of I/O
Assignable balanced stereo outputs for left and right channels
75-ohm S/PDIF inputs for use with compatible equipment
BNC connectors for Word Clock output and reference input
8 combo XLR Class A mic preamps with phantom power; combo jacks accept line inputs
2 x 1/4" TRS insert points (L/R) for connecting analog gear such as dynamics processors or EQs before A/D conversion

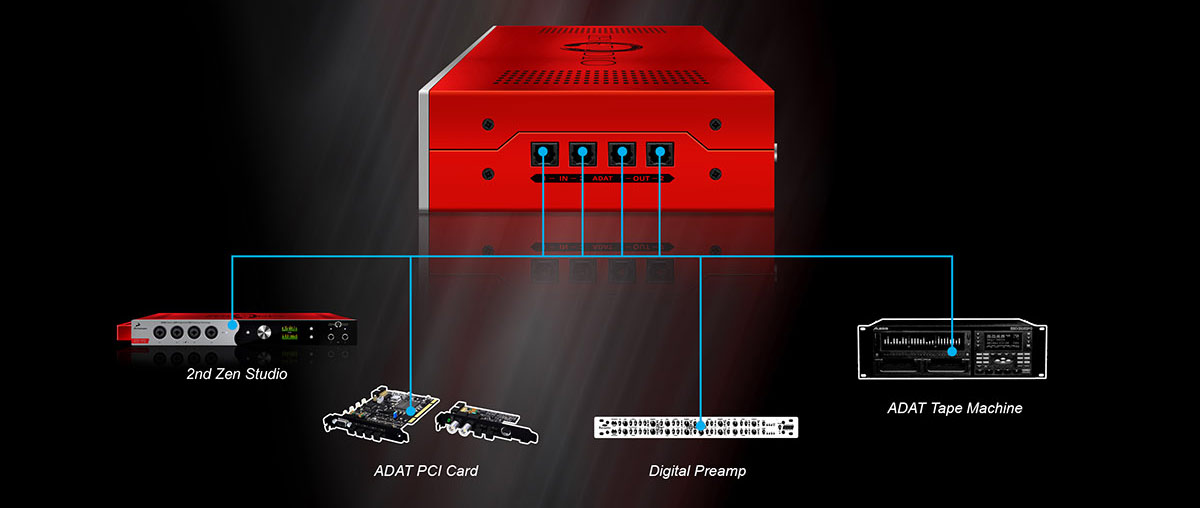

ADAT Connectors — 2 inputs and 2 outputs (up to 8 channels per connector)
Convenient built-in carrying handle for easy grab 'n' go portability
Convenient built-in carrying handle for easy grab 'n' go portability
Routing view, with source (top) and destination (bottom) matrix

Zen Studio Software Control Panel

Intuitive control, right from your computer

Zen Studio's intuitive user interface includes tabbed views for Routing, Mixer, AFX, Meters, and Options, plus five Preset buttons. You drive Zen Studio from Antelope Audio's intuitive Mac/PC desktop app, which gives you flexible control over signal routing, DSP effects, custom presets, and more. Create up to four independent, zero-latency mixes, assignable to any outputs, including the headphone and monitor outs.

  • Tabbed views for Routing, Mixer, AFX, Meters, and Options, plus 5 Preset buttons
  • Flexible control over signal routing, DSP effects, custom presets, and more
  • Create up to 4 independent, zero-latency mixes

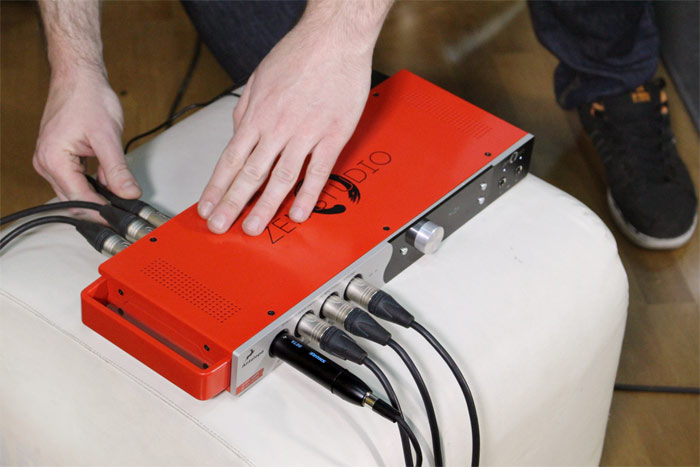

Onboard DSP EQ and Compression

High-quality Antelope FX at your fingertips

In addition to its outstanding audio quality, the Antelope Audio Zen Studio gives you a beefy DSP engine built on a field-programmable gate array IC with mammoth parallel-processing mojo, for eight times more DSP power than similar devices. This lets you enjoy rapid simultaneous processing of multiple effects, juicing your workflow like you won't believe.

  • Onboard DSP-powered EQ and compression
  • Beefy DSP engine built on a field-programmable gate array IC
  • Rapid simultaneous processing of multiple effects

Outstanding audio quality

The Antelope recipe for great-sounding audio

When it comes right down to it, all the flexibility in the world doesn't do you any good if audio quality is lacking; fortunately, Zen Studio's Acoustically Focused Clocking delivers the most analog-sounding audio conversion we've heard, with clean transients, stunning clarity, and detail that let you really hear the attack of instruments and vocals. Antelope's renowned clocking and conversion technology, together with the custom USB technology in the Zen Studio, are the same as in the acclaimed 32-channel Orion interface — a fixture in world-class studios and the playback rigs of top artists.

  • Acoustically focused clocking
  • Stunning clarity and detail
  • Renowned Antelope conversion

Perfect for Tracking, Too

Record a small band or complete drum kit

With its outstanding audio quality, flexibility, and portability, the Zen Studio is a natural for EDM producers who work in multiple studio facilities or challenging environments to use in place of a console, but its generous I/O, 12 great-sounding mic pres, DSP EQ and dynamics, and onboard monitoring facilities also make it a logical choice for tracking a small band or multi-mic drum setup. All the audio I/O is available simultaneously, for a total of 38 input and 32 output channels, plus 24 concurrent I/O channels via Zen Studio's 24-bit/192kHz custom USB.

  • 12 great-sounding mic preamps
  • Simultaneous I/O up to 38 inputs/32 outputs
  • 24 concurrent I/O channels via USB

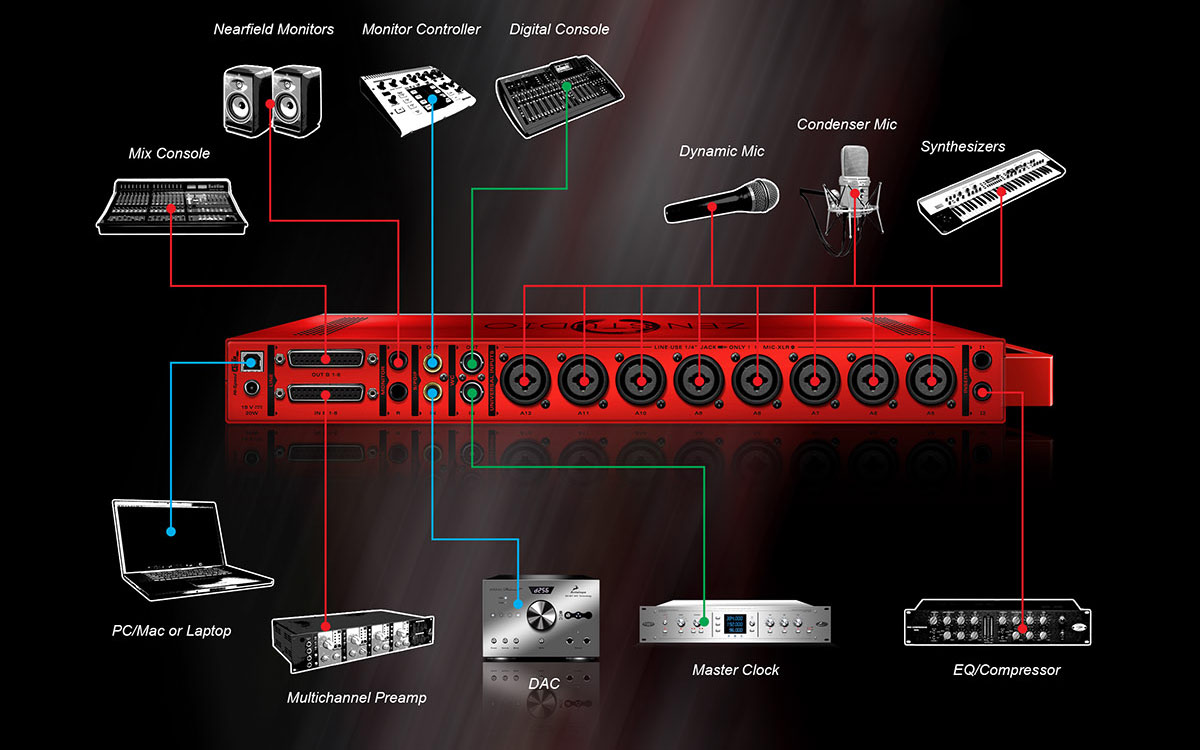

Connectivity

Front

Back

Side

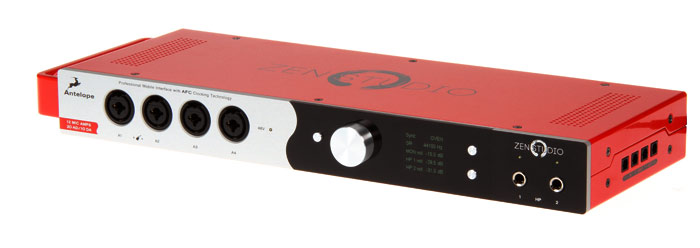

Zen Studio

The ideal interface for modern music production

Antelope scored a huge hit with their Orion interface, a Sweetwater best-seller found in countless top studios worldwide. The Zen Studio maintains that uncompromising level of audio quality while offering you true portability and genuinely useful features geared toward the way you make music today. What's not to love? We're mightily impressed with the Antelope Audio Zen Studio. We're confident you will be, too!

rrrabuyvsvsveytfazersurdwarubawvev

Additional Media

Audio Interface Buying Guide
Zen Studio Portable Audio Interface Manual
Antelope Unveils Zen Studio+
Antelope Audio Updates Zen Studio with Five New EQs
Antelope Audio Introduces AuraVerb for Zen Studio
Hands On: Antelope Audio Zen Studio
How to Reset the Antelope Audio Zen Studio
Hands On: Antelope Audio Zen Studio
Antelope Audio Zen Studio Overview - Sweetwater Minute Vol. 229

Tech Specs

Computer Connectivity USB 2.0
Form Factor Desktop
Simultaneous I/O 24 x 24
Number of Preamps 12
Phantom Power Yes
A/D Resolution 24-bit/192kHz
Built In DSP/FX Yes
Analog Inputs 12 x XLR Combo, 1 x DB-25, 4 x DI
Analog Outputs 1 x DB-25, 2 x 1/4" TRS (Monitor)
Digital Inputs 2 x ADAT (8 Channels), 1 x S/PDIF (Stereo)
Digital Outputs 2 x ADAT (8 Channels), 1 x S/PDIF (Stereo)
Clock I/O 1 x Word Clock (In/Out)
Depth 5.8"
Width 16.8"
Height 1.8"
Weight 4.4 lbs.
Manufacturer Part Number Zen Studio
