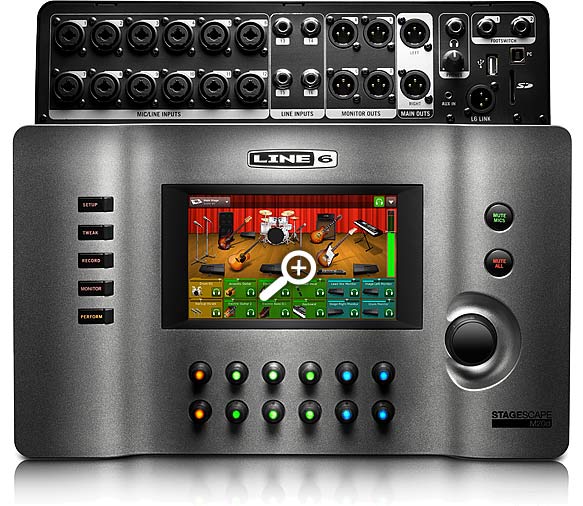

Line 6 StageScape M20d Touchscreen Digital Mixer

20-ch Digital Mixer with Touchscreen Interface, Auto-sensing Inputs and Outputs, Built-in Processing, USB/SD Card Recording, and Remote Control via Apple iPad
Line 6 StageScape M20d Touchscreen Digital Mixer image 1
Line 6 StageScape M20d Touchscreen Digital Mixer image 1
$500 Price Drop!
$999.99
Was: $1,499.99
Or make 3 easy payments

Or just $42/month§ for 24 months

0% interest for 24 months*. 24 equal monthly payments required. Valid through 7/31/2017. Learn more

Or make 3 easy payments of $333.33/month!

Plus $10 processing fee. Use any credit card! Sweetwater's Flexible Payment Plan lets you get your gear now and stretch your payments over time. Plus, we won't charge interest! Learn more

Available This Wednesday (May 3)
Reserve yours now, and we'll ship it as soon as it's available.

Share this with your friends:

Most popular accessories & related items...

Line 6 StageScape M20d Touchscreen Digital Mixer
Available This Wednesday (May 3) Notify me

Fast Setup, Intuitive Mixing, and Easy Multitrack Recording!

The StageScape M20d introduces a new future for live sound. It automatically senses when you plug in a microphone, an instrument, or a speaker, and sets up the channel accordingly. A big, colorful touchscreen gives you interactive control over every part of your show, while intuitive interaction with EQs, effects, feedback suppression, and more makes mixing a breeze — even for novices! You can even run a soundcheck while the band isn't playing as well as mix remotely via iPad! Then easily record your show in high-quality multitrack audio — with or without a computer! With Line 6's StageScape M20d, the future is here!

1 2 3

A New Way to Control Your Mix

The StageScape M20d's touchscreen display gives you instant access to an array of mixing functions that are usually spread all over a typical mixing board. Need to get a great vocal sound fast? Plug in your vocal mic and select a vocal effects preset; the StageScape M20d will configure a custom chain of processors specifically for vocals, ready to tweak to perfection. Setting up a stage mix is easy too — just plug in all your sound sources and speakers, and the StageScape M20d will automatically recognize what's plugged into it. Routing signals, adding effects, and even setting up monitor mixes is as effortless as playing connect the dots. To speed things up even more, you can select one of the professionally crafted DSP presets for your channel and save and recall a huge number of your own presets!

StageScape + StageSource

The perfect combination for intelligent "touch" mixing and crystal-clear audio quality! StageSource Speakers

Combine the StageScape M20d with Line 6's StageSource speakers to create a complete, intelligent live sound system that provides clean, clear, studio-quality sound. Use the convenient L6 Link capability to digitally network your system, and the StageScape M20d will make speaker management, signal routing, and system optimization easier than ever!

Learn More

Powerful Signal Processing

The DSP built into the StageScape M20d replaces multiple racks of gear that you normally need to get the best live sound. You get multiband feedback suppression on every mic input for squeal-free performance, even with the most difficult stage setups. And in addition to a host of EQ, dynamics, and effects processors available for every channel, there are four stereo master effects available for adding a final polish to the entire mix. With 100 pro-quality audio processors and 32-bit floating-point processing, the StageScape gives you pristine audio and at high-resolution throughout. Pro-sounding live mixes are within your reach — even if you've never used a mixing board before!

Effects include:

  • + Multiband feedback suppression
  • + Parametric EQs
  • + Gates
  • + Multiband compressors
  • + Dynamic EQs
  • + Delays
  • + Compressors
  • + Limiters
  • + and more!

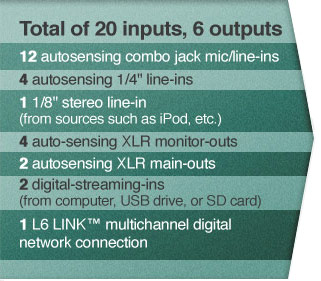

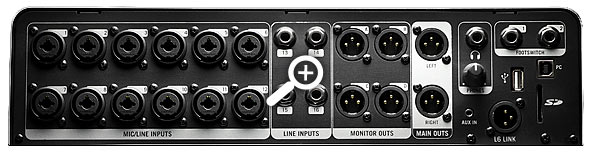

The Ins and Outs

Plug in all of your sound sources, and the StageScape M20d automatically recognizes which are microphones and which are instruments — and optimizes your channel strip and effects settings for them! Using visual cues to route signals and set up monitor mixes, you can manage your audio routing easily via the touchscreen interface. And via Smart Speaker mode, your main PA speakers and subwoofers are automatically self-configured, panned, adjusted, and optimized!

Soundcheck

Thanks to the StageScape M20d's Quick Capture soundcheck features, you can record up to 20 seconds of audio to the internal memory from any of the inputs. The recording plays in a loop, so you can optimize each sound while the band continues setting up. Plus you can set up and adjust the StageScape M20d from anywhere in the room with your iPad! Make mix adjustments from different parts of the room and even tweak monitor mixes right from the stage!

Record Your Show

In addition to using the 20 seconds of Quick Capture recording, you can also record your entire show in high-resolution 24-bit WAV files to an SD card or a USB drive, or directly to your Mac or PC! The WAV files are recorded pre-effects, so the raw tracks can be processed and mixed later in your favorite DAW software, such as Avid Pro Tools or PreSonus Studio One.

Records to:

  • • Internal Memory (20 seconds)
  • • USB Drive
  • • Mac or PC Computer
  • • SD Card

A New Paradigm of Mixing Live Sound

The Line 6 StageScape M20d digital mixing system gives you a powerful and intuitive new way to mix and record your live shows. StageScape M20d was built from the ground up to take the guesswork out of live mixing, letting you focus on the performance and not on your gear. Imagine plugging in all of your sound sources, while the StageScape M20d automatically recognizes which are microphones and which are instruments and optimizes your channel strip and effects settings for them. Then picture managing your signals from an intuitive touchscreen interface, using visual cues to route signals and set up monitor mixes. The StageScape M20d puts world-class live sound within your reach, and even makes recording your performance easier than ever. And with a total of 20 inputs (16 auto-sensing) and six auto-sensing outputs, built-in multiband feedback suppression, remote mixing via iPad, and sound check capability, you'll be able to set up faster - and sound better - than ever before.







Wouldn't you like to mix with a smarter system, one that knows what you're connecting to it and optimizes itself accordingly? And the ability to record 16 channels plus your main mix in high-resolution audio, with or without a computer? Want extensive DSP processing that's easy to use, with intuitive hands-on control? You get all this and more with a groundbreaking design that's intuitive for beginners and pros alike, with the Line 6 StageScape M20d digital mixing system.

Line 6 StageScape M20d Digital Mixing System at a Glance:
  • Touchscreen control over your mix and sound system
  • An entire rack's worth of sound processors, built right in
  • Sets up incredibly fast

Touchscreen control over your mix and sound system
The Line 6 StageScape M20d's large, touchscreen display gives you instant access to an array of mixing functions that are usually spread all over a typical mixing board. Need to get a great vocal sound fast? Plug in your vocal microphone, select a vocal effects preset, and the StageScape M20d will configure a custom chain of processors specifically for vocals, ready to tweak to perfection. Setting up a stage mix is easy too - just plug in all your sound sources and speakers, and the StageScape M20d automatically recognizes what's plugged into it. Routing signals, adding effects, and even setting up monitor mixes is as effortless as playing connect the dots.

An entire rack's worth of sound processors, built right in
The incredibly powerful DSP built into the StageScape M20d replaces multiple racks of gear that you would need to get the best live sound. You get multiband feedback suppression on every microphone input for squeal-free performance, even with the most difficult stage setups. And in addition to a host of EQ, dynamics, and effects processors available for every channel, you get four stereo master effects available for adding a final polish to your entire mix. Best of all, the StageScape M20d's intuitive touchscreen interface makes setting everything up so easy, that pro-sounding live mixes are within your reach even if you've never used a mixing board before!

Sets Up Faster Than Ever
Thanks to the StageScape M20's Quick Capture sound check features, you can record up to 20 seconds of audio to the internal memory from any of the inputs. The recording plays in a loop so you can optimize each sound while the band continues setting up. And best of all, you can set up and adjust the StageScape M20d from anywhere in the room with your iPad! It's the perfect way to make mix adjustments from different parts of the room, and a great way tweak monitor mixes from the stage.

Additional Media

Live Mixer Buying Guide

Tech Specs

Type Digital
Channels 16
Inputs - Mic Preamps 12 x XLR
Inputs - Line 4
Inputs - Other 1 x 1/8" (Aux)
Inputs - Digital 2 x USB
Outputs - Main 2 x XLR
Outputs - Other 4 x XLR (Monitor)
Busses/Groups 2 x Bus
Computer Connectivity 2 x USB
Headphones 1 x 1/4"
EQ Bands Fully Parametric
Effects Yes (100 Processors)
Height 4.7"
Depth 13.3"
Width 16"
Weight 12.3 lbs.
Manufacturer Part Number 99-090-0105
