Power Up Your Yamaha Console with Waves SoundGrid
Add dedicated DSP for running Waves plug-ins right from your Yamaha digital mixing console with the Waves Server One-C SuperRack Combo. It's based on the SoundGrid Server One-C server, with an Intel Coffee Lake i3 4 Core processor and 8GB of RAM for running your Waves plug-ins with ultra-low latency. This combo also includes a WSG-Y16 V2 mini-YGDAI I/O card for your console, plus a Netgear ProSafe GS108 network switch and Ethernet cabling. You also get five Waves plug-ins chosen for their flexibility in all manner of live mixing scenarios. With this Waves Proton combo, you can process, record, and soundcheck with Waves SoundGrid — in real time — straight from your Yamaha console.
Note: This is an expansion pack for select Yamaha digital consoles, including the Yamaha PM5D, DSP5D, M7CL, LS9-16, LS9-32, DM1000, DM2000, 01R96, 02V96, DME24N, DME64N, TX4n, TX5n, TX6n, CL1, CL3, and CL5 consoles — it's not a standalone bundle. For more information, call your Sweetwater Sales Engineer.
Related Videos: Server One-C Combo for Yamaha

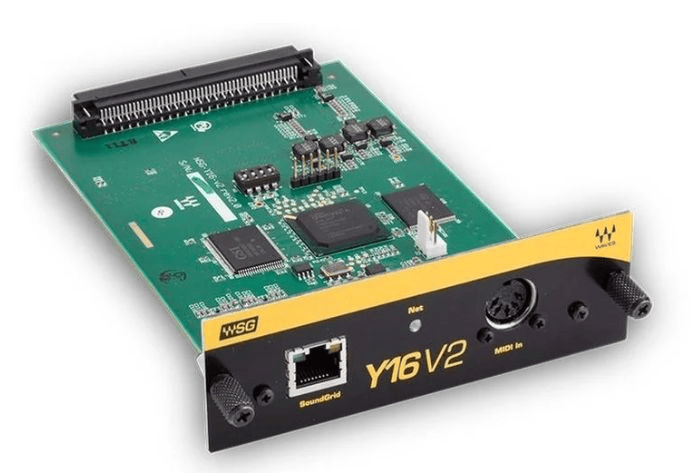

WSG-Y16 V2 SoundGrid Interface Card
The WSG-Y16 includes a soundcard for Yamaha mixing consoles plus SoundGrid technology for your control PC. With this system and an authorized iLok, your Yamaha console can process up to 16 channels of audio with Waves plug-ins. Just route a channel from your console to the WSG-Y16 channel, process the channel with Waves plug-ins on the SoundGrid server, and send it back. And since the WSG-Y16 card has a MIDI input, you can even control the plug-in directly from the console or your favorite external control surface. Since the Waves WSG-Y16 system takes advantage of the latest Ethernet and CPU technologies, you get superb performance with extremely low latency — the processing happens even faster than it does with most dedicated DSP-based platforms! Finally, the live sound realm can connect with the quality that studios have come to expect. And artists can enjoy the same sound they created in the studio when they take their act to the big stage.
Waves WSG-Y16 V2 SoundGrid Interface Card Features:
- Sound card system enables Yamaha consoles to use Waves plug-in processing
- Includes a mini-YGDAI SoundGrid I/O card for Yamaha mixing consoles
- Requires a Control PC and an authorized iLok with SoundGrid-compatible Waves plug-ins
- Provides a low-latency platform for running Waves plug-ins
- Uses standard, off-the-shelf components: computers, switches, servers, Ethernet cables, etc.
- Supports 16-channel processing at 44.1/48kHz, 8 channels at 88.2/96kHz
- For 32-channel processing, install 2 cards
- Supports MIDI control directly from the console
- Redundancy and recovery support via SoundGrid
- Connects with other SoundGrid-enabled audio equipment
Waves SoundGrid SuperRack Plug-in
A natural extension of your mixing console, Waves’ SuperRack is a cutting-edge plug-in rack that runs in your SoundGrid network. Quick to set up, SuperRack is flexible to use with its multi-touch compatible workspace and expansive workflow customization. Whether you’re a front-of-house, monitor, broadcast, studio, or audio-visual engineer, SuperRack lets you run plug-ins in real time, customize your workspace with floating windows, save elaborate snapshots, and run sessions and live shows faster and more confidently than ever before. Discover the next generation of live plug-in processing with Waves SuperRack.
Waves SuperRack Plug-in Rack Features:
- View and control multiple plug-in instances simultaneously
- Multi-touch compatible graphic interface
- Expand your workspace to up to four monitors
- Easily tweak small plug-in parameters with Touch & Slide fader
- Quickly access up to 12 plug-ins per snapshot via the Hot plug-ins panel
- Map application and plug-in controls to MIDI & computer keyboard for quick hands-on access
- Switch inputs and outputs while maintaining processing chains
- Adjust multiple racks simultaneously with the “Linking” function
- Share SoundGrid I/Os in a network to build complex setups
- Selectively recall snapshots via extended scope filter
- Comprehensive device and network monitoring
- Advanced latency alignment management
- Host mirroring (DiGiCo and Lawo) and DSP server redundancy
SoundGrid Server One-C DSP Server
Powered by the latest-generation Intel Coffee Lake Core i3 CPU, Waves' SoundGrid Server One-C is a dedicated audio processing unit with one mission: running your plug-ins. This offloads all plug-in processing tasks from your computer to the server, allowing the use of more plug-ins in your productions without any restrictions imposed by the power of your computer’s CPU. With SoundGrid Connect — included in the server’s accompanying software — almost any audio interface can "speak" SoundGrid, so you don’t have to replace your existing gear in order to power your sessions with SoundGrid.
SoundGrid Server One-C DSP Features:
- Plug-in processing powerhouse for studio and FOH
- Compact, powerful DSP unit
- Ultra-low latency: as low as 0.8 milliseconds at 44.1, 48kHz, 88.2 and 96kHz
- Use with any SoundGrid interface
- Use with non-SoundGrid I/Os (ASIO/CoreAudio) via SoundGrid Connect
- Neutrik etherCon SoundGrid port connector
- Quiet operation with automatic CPU fan control
- Robust all-metal casing
- 2U rack-mountable (rack ears and rack shelf available separately)
- CPU: Intel CoffeeLake Core i3
- RAM: 8GB
- Motherboard: Gigabyte GA-B150N-GSM
- LAN Card: Intel On-Board
- 8.7 inches L x 9.9 inches D x 3.39 inches H
- Weight: 7.1 pounds
Netgear ProSafe GS108 Ethernet Switch
The Netgear ProSafe GS108 isn't just a robust Gigabit Ethernet switch for everyday use. It's also a Waves SoundGrid tested and approved way to connect computers and SoundGrid devices on your audio network. Laptops, workstations, servers, and I/Os — it all syncs seamlessly with the Netgear ProSafe GS108. Highlights include 8 ports for building a large network, 802.1p prioritization for lossless traffic flows, and desktop or wall-mount operation to accommodate whatever studio space you work in.
Netgear ProSafe GS108 Ethernet Switch Features:
- Robust Gigabit Ethernet switch
- SoundGrid tested approved for audio networking
- 8 ports — network all your workstations, SoundGrid servers, and SoundGrid I/Os
- 802.1p prioritization for lossless traffic flows
- Desktop or wall-mount operation
Waves Plug-in Bundle
This bundle includes five must-have Waves plug-ins that combine analog-sounding warmth with laser-precise digital control. It starts with Renaissance Equalizer — one of the most popular EQ plug-ins out there, thanks to its versatile sound shaping and sweet-sounding vintage-modeled filter curves. Next, you get Renaissance Reverb, which puts the atmospheric mojo of 12 classic reverberation types right at your fingertips. Renaissance Axx delivers quick, easy compression that's tailor-made for guitars, and Renaissance Bass adds low-end girth to any track. You also get H-Delay — a rich, dimensional analog-style delay that's capable of a wide-ranging array of effects.
Renaissance Plug-in Bundle and H-Delay Features:
- Renaissance Equalizer yields versatile sound shaping with sweet-sounding vintage-modeled filter curves
- Renaissance Reverb puts 12 classic reverberation types right at your fingertips
- Renaissance Axx delivers quick, easy compression that's tailor-made for guitars
- Renaissance Bass adds low-end girth to any track
- H-Delay supplies a wide-ranging array of analog-style delay effects
