A Rock-solid Digital Console Tour Package
This DiGiCo S31 tour package gives you everything you need to take top-shelf sound and robust processing on the road with rock-solid reliability. An S31 console supplies you with 48 channels of powerful digital mixing. A DMI-MADI-C expansion card yields 64 channels of MADI I/O. A D2-Rack feeds the digital mixer with 24 microphone inputs, 24 switchable Mic/AES inputs, and 16 analog outputs. You also get a DMI-BLANK panel to keep your rack looking clean, along with two 246-foot MADI cables and a dust cover. An FC-S31 flight case rounds out this all-inclusive package.
Related Videos: S31 D2 CAT5e/6 Rack Tour Package

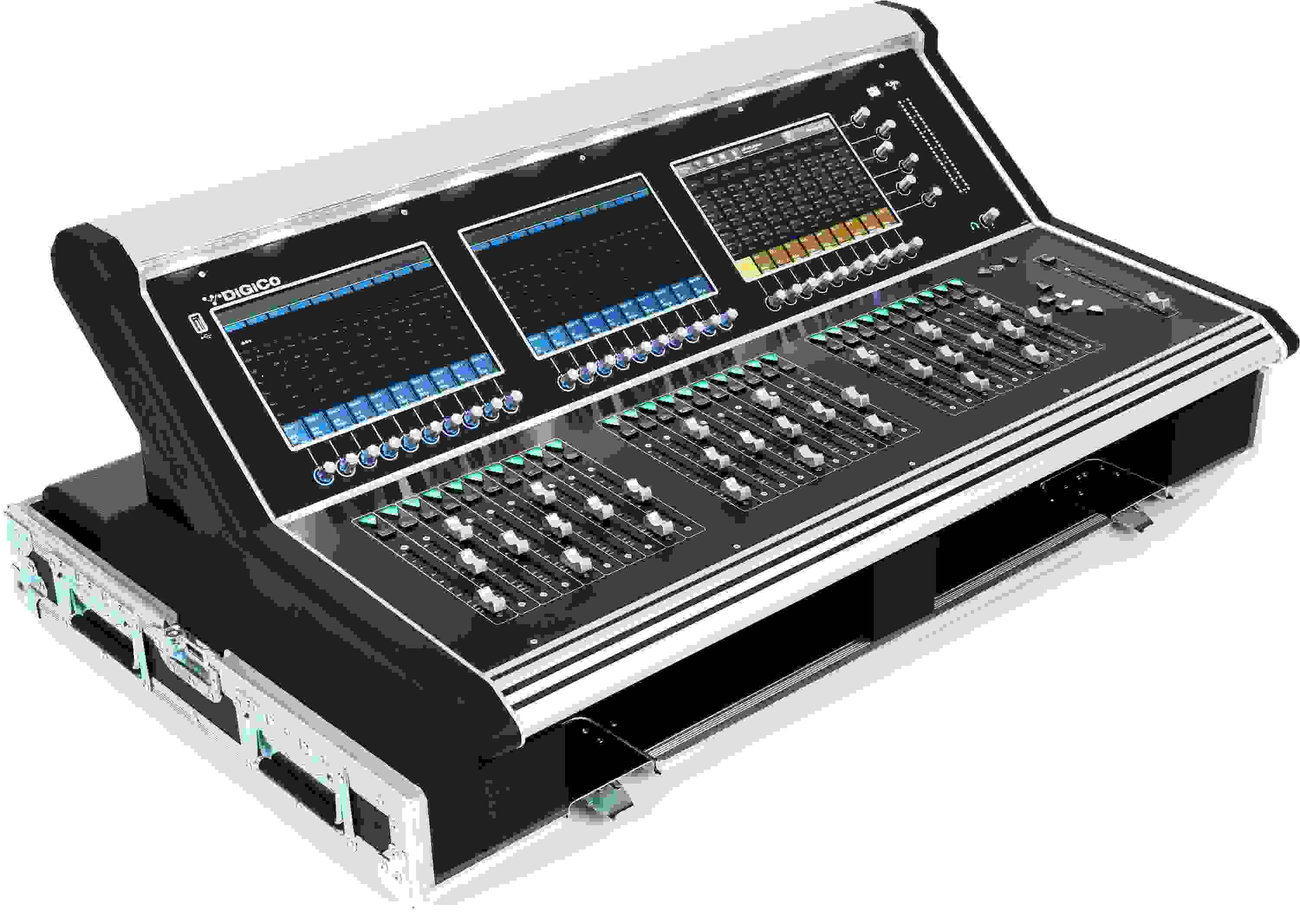

S31 Digital Mixing Console
Take DiGiCo's S21, give it a third touchscreen and more faders, and you have the S31. A robust ARM quad-core RISC processor puts an abundance of power under the hood. The touchscreens supply intuitive tactile control and instant visual feedback. 24 mic/line inputs and 12 analog outputs give you enough I/O to get started, while dual DMI option card slots provide room for expansion. The S31 delivers 24-bit/96kHz digital audio for world-class sound and comes with an arsenal of digital effects. A built-in 48-channel USB interface makes capturing any performance easy. Featuring an aerospace-graded aluminum extrusion and rugged polycarbonate overlay, the DiGiCo S31 is a full-featured digital mixer that's built for the road.
Features:
- 24 mic/line inputs and 12 analog outputs
- 2-channel AES I/O, word clock I/O, GPI/GPO, DVI output, and 2 Ethernet ports
- Dual DMI (DiGiCo Multichannel Interface) option card slots for expanding your I/O (modules sold separately)
- 48 Flexi channels can be configured as mono or stereo without reducing channel count (equivalent of 96 DSP channels)
- 16 Flexi mono/stereo aux/sub-group buses (equivalent of 32 DSP channels)
- Stereo master bus (2), solo busses (2 stereo, 4 total), and 10 x 8 matrix (8)
- 21 dynamic EQs, assignable DiGiTuBes, and assignable multiband compressors, plus 8 digital FX, and 16 assignable graphic EQs
- 24-bit/96kHz native operation for world-class sound (can be set to 24-bit/48kHz)
- 3 touchscreens provide instantaneous feedback and control on 30 simultaneous channels
- Take command with intuitive pinch, touch, and drag gestures
- 31 faders and 30 rotary encoders provide you with a more hands-on feeling
- Interactive meter supplies you with at-a-glance access to information
- Helpful color coding identifies channels, auxes, and groups
- Encoder rings' HTL functionality reinforces visual feedback
- Built-in 48-in/48-out USB audio interface
- Wireless control via iPad and the S-Series app
- Aerospace-graded aluminum extrusion and rugged polycarbonate overlay
DMI-MADI-C Module
Thanks to dual DMI (DiGiCo Multichannel Interface) option card slots, DiGiCo S-Series digital consoles are loaded with I/O. This package comes with a DMI-MADI-C is an expansion card that interfaces with a standard MADI stream (64-in/64-out) at 48KHz or 96KHz. The live sound experts here at Sweetwater appreciate that this package also includes a DMI-BLANK panel, which — like its name suggests — is a blank panel to keep your rig looking clean.
Features:
- Cat 5e MADI expansion card for S-Series digital consoles
- Interfaces with a standard MADI stream (64-in/64-out) at 48KHz or 96KHz
- Package also includes a DMI-BLANK panel to keep the rig looking clean
D2-Rack Digital Stage Box
The DiGiCo D2-Rack is the easiest way to get audio to and from your S- or SD-Series console. Place the D2-Rack onstage, then run a single BNC cable to your console — that's it! Beyond that, you can share the D2-Rack's I/O between two consoles via the stage box's dual MADI ports. The D2-Rack supplies you with 24 microphone inputs, 24 switchable Mic/AES inputs, and 16 analog outputs. You also get two expansion slots that give you an additional 16 analog, AES, or Aviom outputs, for a total of 32. The D2-Rack is a great way to add flexible I/O to your DiGiCo digital console.
Features:
- Digital stage box for DiGiCo S- and SD-Series consoles
- 24 mic inputs, 24 switchable mic/AES inputs, and 16 analog outputs
- 2 expansion slots provide an additional 16 analog, AES, or Aviom outputs (modules sold separately)
- Run digital audio to and from the stage with a single BNC cable
- Up to 24-bit/96kHz digital audio for world-class sound
- Dual MADI ports allow sharing of I/O between two consoles at 48kHz
- Dual redundant power supplies provide peace of mind
