New from Synergy: Marshall JCM800 Module

Voodoo Lab 2.1mm Output Splitter Adapter Cable - Dual Straight to Straight - 4 inch

Item ID: PPAV
Voodoo Lab 2.1mm Output Splitter Adapter Cable - Dual Straight to Straight - 4 inch
Reviews for

Voodoo Lab 2.1mm Output Splitter Adapter Cable - Dual Straight to Straight - 4 inch Reviews

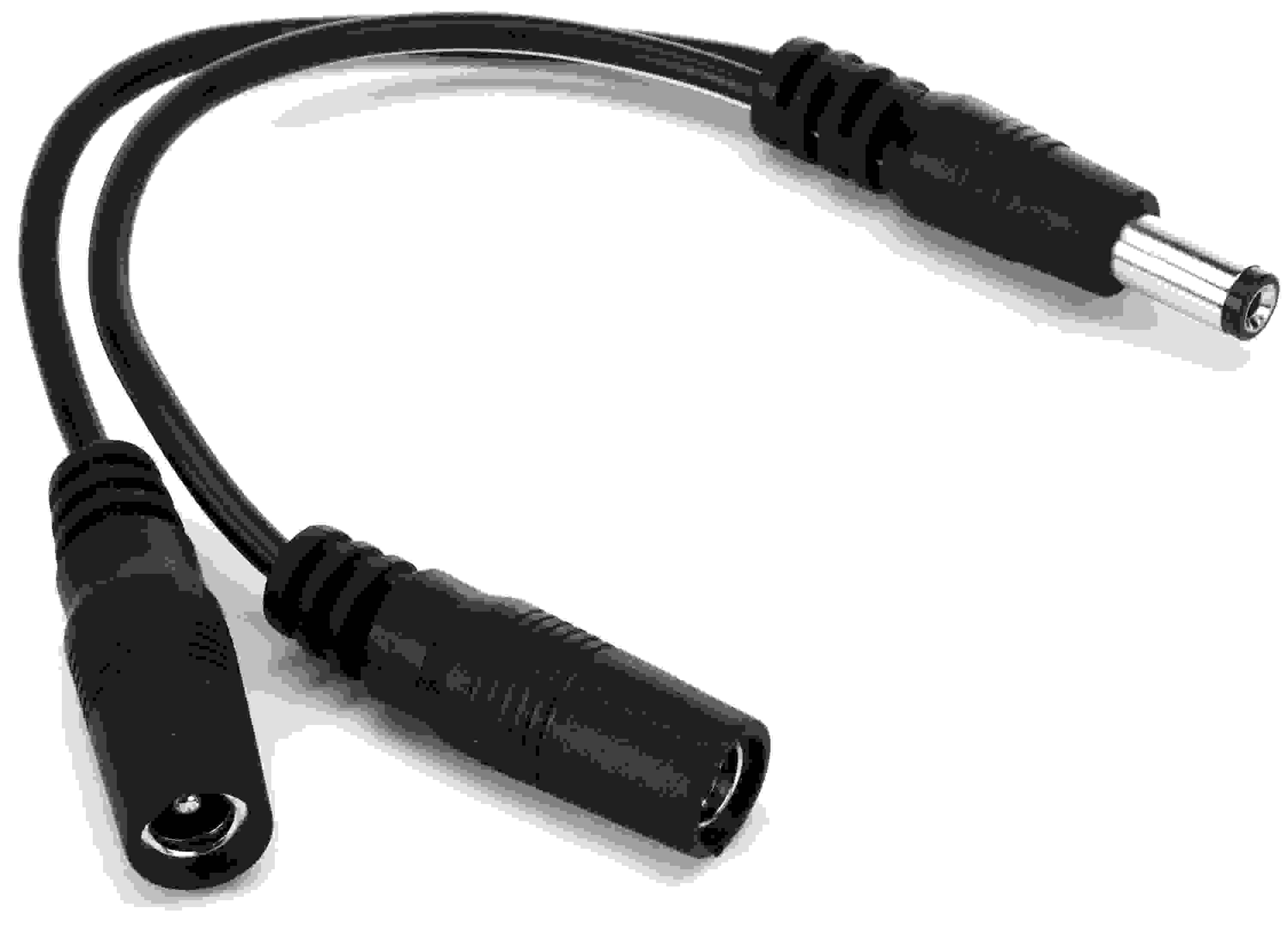

4" Power Output Splitter Adapter for Voodoo Lab Pedal Power 2 Plus and Pedal Power ISO-5 Pedal Power Supplies

Use the Voodoo Lab Output Splitter Adapter with your Voodoo Lab Pedal Power 2 Plus or Pedal Power ISO-5 to power two effects pedals from just one Pedal Power output. Just connect the male end of the Output Splitter Adapter to a Pedal Power output, and use the female jacks to connect power cables your pedal. The cable with a white stripe is ground lifted so you can eliminate ground loops. You can clean up your pedalboard and power your effects pedals at the same time, with the Voodoo Lab Output Splitter Adapter!

More Details
Price:$7 and 99 cents
Add to Cart
In Stock!

Page 1 of 1
April 17, 2025

Not worth the trouble!

By Sweetwater Customer

I purchased two of these for use with my Strymon Zuma. I had the same issue as others the side with the white stripe didn't work at all making it completely useless. What a piece of junk. Don't waste your time or money on this product.

December 26, 2024

Defective Part

By Bill

I purchased four of these parts for my pedalboard. One of four was defective. One of the split connections on the defective part did not have electrical continuity on the center conductor. I verified this with a multimeter. It was returned to Sweetwater. The replacement part also had the same issue. I took the replacement part again back to Sweetwater. I brought my multimeter with me this time. The salesman and I took three more parts off the shelf and we checked them out and they all had the same issue.

There is another review titled "Junk" describing exactly the problem I had.

June 24, 2024

Worked for 6 months

By Sweetwater Customer

After 6 months, one of the two outputs just quit working.

November 9, 2022

Junk.

By Jim F. from Ellicott City, MD

Of 14 that I have received (including a second round to replace those that failed upon initial installation), 4 remain functional. I tracked down Voodoo Labs website and they stated that the white striped leg does not provide a ground to "avoid ground loop issues". I tested all of the units received with a DVOM and verified that the ten inoperative splitters do NOT have a functional ground on the striped leg. The four splitters that function normally DO have a functional ground. Of the failed splitters, most are able to power one pedal on the grounded leg, but there are several that will not power a pedal on either of the branches. The manufacturing seems inconsistent at best. I have opted to remove even the functional splitters from my pedalboard in order to eliminate a shining Achilles heel that I cannot even acquire serviceable spares to mitigate random failure risks.

Of note, I am powering my system with a new Strymon Zuma and Ojai expansion blocks that have no trouble powering any of the affected pedals directly. When I attempted to use the splitters, the combined amperage load was well under half the rated output of the power supply channel. All power cables to splitters passed testing and were able to power the affected pedals when directly connected to the Zuma power supply.

The design appears useful and is available in multiple lengths, making for tidy usage and problem solving, but due to the inconsistent manufacturing and lack of functionality, it simply causes more problems than anything and compromises the reliability of whatever application it is applied to.

Read More
