Used QSC KW152 Amp Module 1000W Class D Continuous Fully Working 100% WP-215212-00
Excellent Condition
212
212 views
$485.00
Free Shipping
Sorry, the item you are looking for was sold on
July 18, 2025.
We've left this page up for reference only. Check out the great alternatives on this page.
Pickup Optional
in River Edge, NJ
7 Day Return Policy
Item Description
Listed 10 months ago

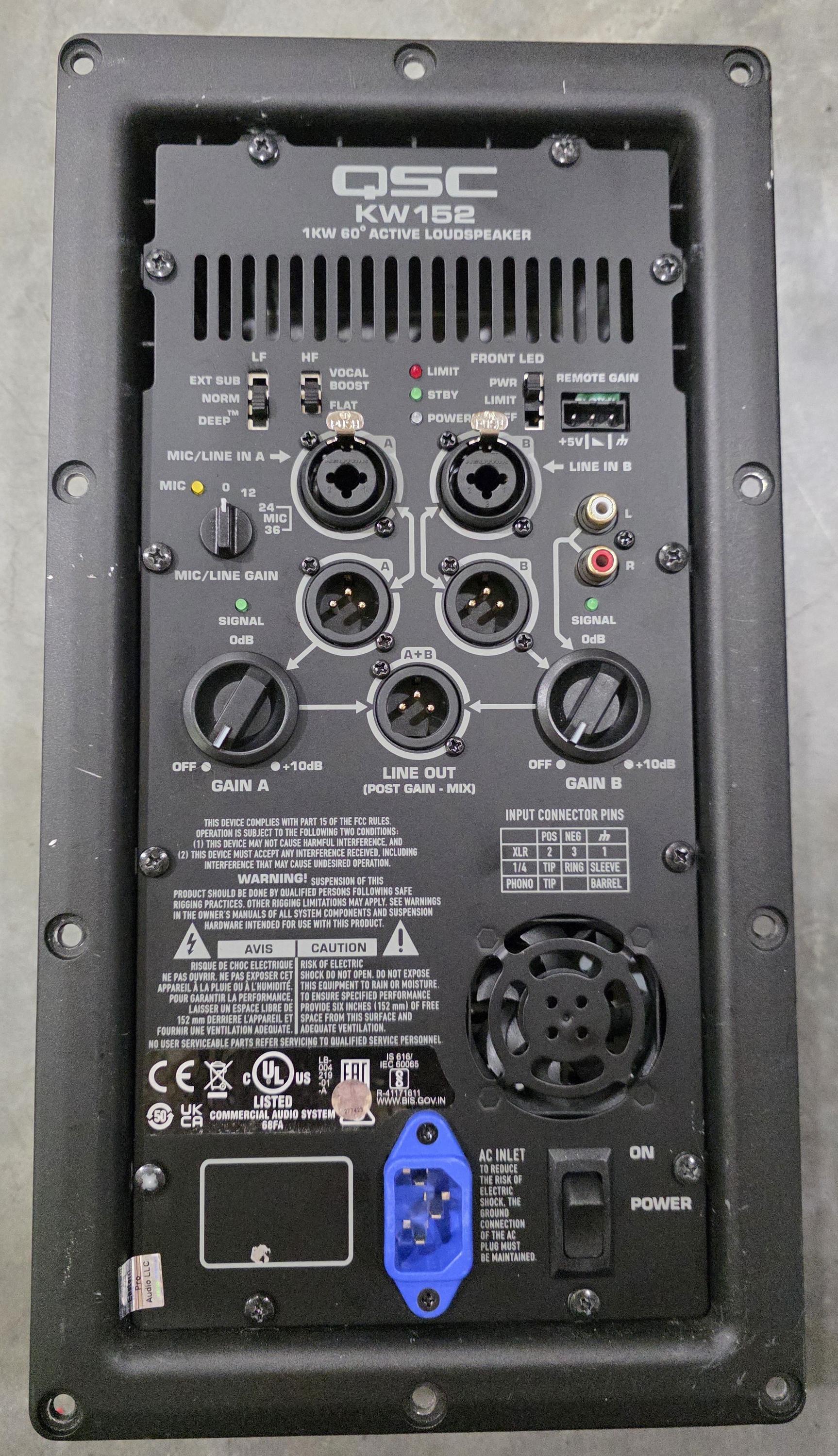

This is a Fully working QSC KW152 Amp Module ONLY
Just plug into your original QSC or Custom cabinet and go!
Dimensions:
Outside frame 14" by 7.5"
Hole cut out 12.5" by 6"
Depth 4"
Just plug into your original QSC or Custom cabinet and go!
Specifications:
Power Output2 1000 W Class D continuous
2000 W peak
Input Impedance XLR / ¼?????: 38 k? balanced / 19 k? unbalanced
Controls Power, Gain, LF Mode (Normal/DEEP?), Polarity (Normal/Reverse), Front LED (On/Off/Limit)
Indicators Power, Signal, Standby, Limit
Connectors Dual balanced female XLR/¼????? line level input, Dual Balanced male XLR full range line level out, Remote gain control, Locking IEC power connector
Cooling On demand, 50 mm variable speed fan
Amplifier Protection Thermal limiting, output overcurrent, overtemperature muting, GuardRail?
Transducer Protection Thermal limiting, excursion limiting
AC Power Input Universal power supply 100?240 VAC, 50 to 60 Hz
AC Power Consumption
(1/8 Power) 100 VAC, 2.3 A
120 VAC, 2.01 A
230 VAC, 1.13 A
Thanks For Looking ! ! !
